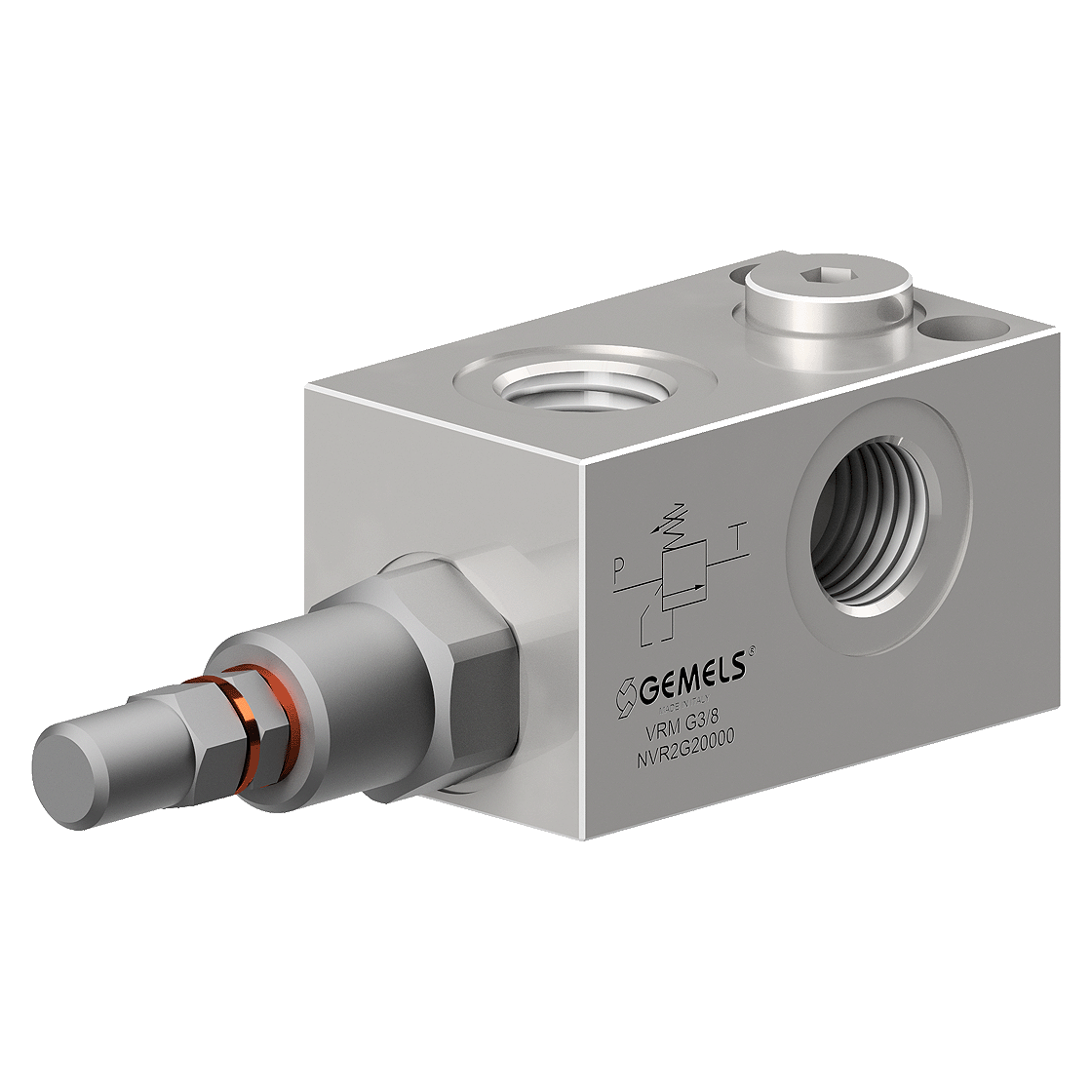

VALVOLA LIMITATRICE CONTROLLO DI PRESSIONE

VRM

valvola idrauliche controllo pressione, relief valve

Con porta per manometro

Scheda Tecnica

Carbon Steel
Tipo VALVOLA LIMITATRICE CONTROLLO DI PRESSIONE
Dimensioni dal DN10 al DN20
Filettature BSP-NPT-SAE
Pressione fino a PN350
Temperatura range da - 20°C fino a +80°C
pdf ( 1.62 MB )
Dettagli Tecnici
valvola limitatrice di controllo
DIN/ISO 228 BSP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NVR2G020000 VRM G 3/8 10 35 72 49.5 40 40 134 6.5 G 1/4 62 26 8.5 0.8 15 26
NVR2G030000 VRM G 1/2 13 35 77 54 45 45 139 6.5 G 3/8 62 29.5 8.5 1 17.5 30
NVR2G040000 VRM G 3/4 20 35 92 68 50 50 154 6.5 G 1/2 62 35 10 1.5 20 32
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NVR2N020000 VRM N 3/8 10 35 72 49.5 40 40 134 6.5 N 1/4 62 26 8.5 0.8 15 26
NVR2N030000 VRM N 1/2 13 35 77 54 45 45 139 6.5 N 3/8 62 29.5 8.5 1 17.5 30
NVR2N040000 VRM N 3/4 20 35 92 68 50 50 154 6.5 N 1/2 62 35 10 1.5 20 32
disegno tecnico Gemels
SAE J1926-1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NVR2S020000 VRM SAE 6 10 35 72 49.5 40 40 134 6.5 7/16 UNF 62 26 8.5 0.8 15 26
NVR2S030000 VRM SAE 8 13 35 77 54 45 45 139 6.5 9/16 UNF 62 29.5 8.5 1 17.5 30
NVR2S040000 VRM SAE 12 20 35 92 68 50 50 154 6.5 3/4 UNF 62 35 10 1.5 20 32
disegno tecnico Gemels
Download: Cataloghi e Disegni

VRM

DATASHEET
pdf ( 1.62 MB )
