Innesti rapidi per l'industria pesante

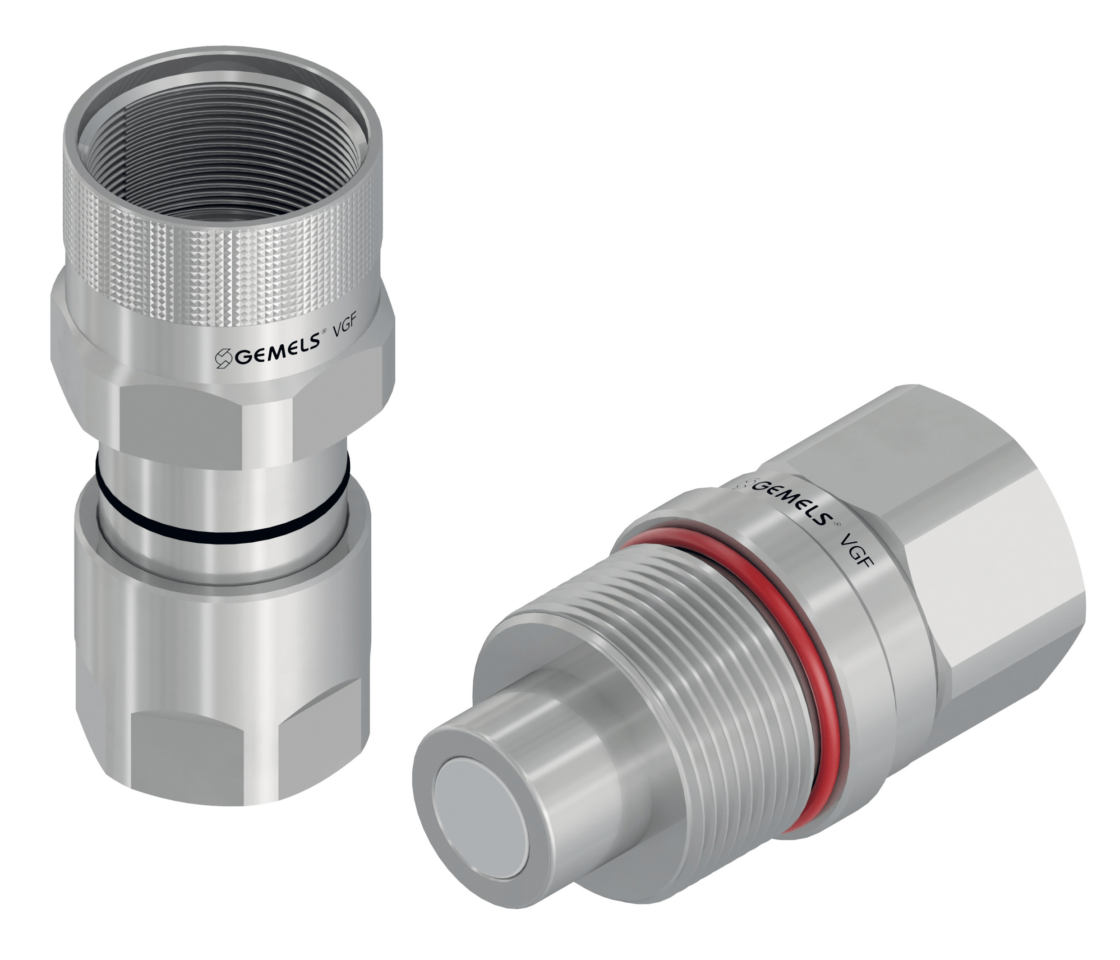

VGF

Innesti rapidi A VITE Gemels

Accoppiamento a vite faccia piana

Il prodotto GEMELS VGF è un innesto rapido a vite faccia piana progettato per connessioni e disconnessioni sicure e rapide in macchine per movimento terra e impianti industriali pesanti. Realizzato in acciaio al carbonio, con dimensioni da DN10 a DN25 e pressione fino a PN480, VGF garantisce affidabilità, durabilità e prestazioni elevate anche negli ambienti più gravosi. Ideale per applicazioni in impianti idraulici industriali, macchine movimento terra, escavatori e attrezzature pesanti, riduce perdite di fluido e semplifica manutenzione e installazione, offrendo una soluzione versatile per il settore industriale e meccanico.

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN10 al DN25
Pressione fino a PN480

Caratteristiche Generali

Disponibili nei colori: giallo, rosso, blu, verde

  • CAP per innesti femmina
  • PLUG per innesti maschio
pdf ( 243.83 KB )
flat face screw couplings
QUICK COUPLINGS FLAT FACE SCREW (MALE / FEMALE) FEMALE THREAD ISO 1179-1 BSPP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29G020000 QC VGF G 3/8 MALE 10 55 91.5 30 19.75 G3/8 0.4 M33×2
NC30G020000 QC VGF G 3/8 FEMALE 10 42 38.5 74.3 30 G3/8 0.9 M33×2
NC29G020001 QC VGF G 1/2 MALE 10 55 95.5 30 19.75 G1/2 0.5 M33×2
NC30G020001 QC VGF G 1/2 FEMALE 10 42 38.5 78.3 30 G1/2 1 M33×2
NC29G030000 QC VGF G 1/2 MALE 12.5 55 103 34 24.5 G1/2 0.85 M40×3
NC30G030000 QC VGF G 1/2 FEMALE 12.5 42 46 84.3 36 G1/2 1.25 M40×3
NC29G030001 QC VGF G 3/4 MALE 12.5 55 106 34 24.5 G3/4 0.9 M40×3
NC30G030001 QC VGF G 3/4 FEMALE 12.5 42 46 86 36 G3/4 1.4 M40×3
NC29GA30000 QC VGF G 3/4 MALE 16 55 98.8 36 27 G3/4 0.65 M45×3
NC30GA30000 QC VGF G 3/4 FEMALE 16 35 53.7 85 41 G3/4 0.75 M45×3
NC29G040001 QC VGF G 1 MALE 19 50 132 41 29.95 G1 1.3 M50×3
NC30G040001 QC VGF G 1 FEMALE 19 35 56 101.7 46 G1 1.55 M50×3
NC29G050001 QC VGF G 1 1/4 MALE 25 47 123.5 55 36 G1 1/4 1.325 M58×3
NC30G050001 QC VGF G 1 1/4 FEMALE 25 35 68.7 108.5 55 G1 1/4 1.37 M58×3
QUICK COUPLINGS FLAT FACE SCREW (MALE / FEMALE) FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29N020000 QC VGF N 3/8 MALE 10 55 93.5 30 19.75 N3/8 0.4 M33×2
NC30N020000 QC VGF N 3/8 FEMALE 10 42 38.5 75.3 30 N3/8 0.9 M33×2
NC29N020001 QC VGF N 1/2 MALE 10 55 98.3 30 19.75 N1/2 0.5 M33×2
NC30N020001 QC VGF N 1/2 FEMALE 10 42 38.5 81.3 30 N1/2 1 M33×2
NC29N030000 QC VGF N 1/2 MALE 12.5 55 103 34 24.5 N1/2 0.85 M40×3
NC30N030000 QC VGF N 1/2 FEMALE 12.5 42 46 84.3 36 N1/2 1.25 M40×3
NC29N030001 QC VGF N 3/4 MALE 12.5 55 106 34 24.5 N1/2 0.9 M40×3
NC30N030001 QC VGF N 3/4 FEMALE 12.5 42 46 86 36 N1/2 1.4 M40×3
NC29NA30000 QC VGF N 3/4 MALE 16 55 98.8 36 27 N3/4 0.65 M45×3
NC30NA30000 QC VGF N 3/4 FEMALE 16 35 53.7 85 41 N3/4 0.75 M45×3
NC29N040001 QC VGF N 1 MALE 19 50 132 41 29.95 N1 1.3 M50×3
NC30N040001 QC VGF N 1 FEMALE 19 35 56 101.7 46 N1 1.55 M50×3
NC29N050001 QC VGF N 1 1/4 MALE 25 47 123.5 55 36 N1 1/4 1.325 M58×3
NC30N050001 QC VGF N 1 1/4 FEMALE 25 35 68.7 108.5 55 N1 1/4 1.37 M58×3
QUICK COUPLINGS FLAT FACE SCREW (MALE / FEMALE) FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29S020000 QC VGF SAE6 MALE 10 55 92.5 30 19.75 9/16-18 UNF 0.4 M33×2
NC30S020000 QC VGF SAE6 FEMALE 10 42 38.5 74.3 30 9/16- 18 UNF 0.9 M33×2
NC29S020001 QC VGF SAE8 MALE 10 55 95.5 30 19.75 3/4-16 UNF 0.5 M33×2
NC30S020001 QC VGF SAE8 FEMALE 10 42 38.5 78.3 30 3/4-16 UNF 1 M33×2
NC29S030000 QC VGF SAE8 MALE 12.5 55 103 34 24.5 3/4-16 UNF 0.85 M40×3
NC30S030000 QC VGF SAE8 FEMALE 12.5 42 46 84.3 36 3/4-16 UNF 1.25 M40×3
NC29S030001 QC VGF SAE12 MALE 12.5 55 108.5 34 24.5 1-1/16-12 UN 0.9 M40×3
NC30S030001 QC VGF SAE12 FEMALE 12.5 42 46 87.3 36 1-1/16-12 UN 1.4 M40×3
NC29SA30000 QC VGF SAE12 MALE 16 55 98.8 41 27 1-1/16-12 UN 1.25 M45x3
NC30SA30000 QC VGF SAE12 FEMALE 16 35 53.7 85 41 1-1/16-12 UN M45x3
NC29S040000 QC VGF SAE12 MALE 19 50 130 41 29.95 1-1/16-12 UN 1.25 M50×3
NC30S040000 QC VGF SAE12 FEMALE 19 35 56 99.7 46 1-1/16-12 UN 1.5 M50×3
NC29S040001 QC VGF SAE16 MALE 19 50 132 41 29.95 1 5/16-12 UN 1.3 M50×3
NC30S040001 QC VGF SAE16 FEMALE 19 35 56 101.7 46 1 5/16-12 UN 1.55 M50×3
FEMALE THREAD ISO 1179-1 BSPP_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29G040000 QC VGF G 3/4 MALE 19 50 128,5 41 29,95 G3/4 1,25 M50×3
NC30G040000 QC VGF G 3/4 FEMALE 19 35 56 97,7 46 G3/4 1,5 M50×3
NC29G050000 QC VGF G1 MALE 25 47 143,2 50 36 G1 1,7 M58x3
NC30G050000 QC VGF G1 FEMALE 25 35 69,8 104 55 G1 1,8 M58x3
NC29G050002 QC VGF G1 1/2 MALE 25 47 145,7 55 36 G1 1/2 1,9 M58x3
NC30G050002 QC VGF G1 1/2 FEMALE 25 35 69,8 105 55 G1 1/2 2 M58x3
disegno tecnico Gemels
FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29N040000 QC VGF N 3/4 MALE 19 50 128,5 46 29,95 N3/4 1,25 M50×3
NC30N040000 QC VGF N 3/4 FEMALE 19 35 56 97,7 46 N3/4 1,5 M50×3
NC29N050000 QC VGF N1 MALE 25 47 143,2 50 36 N1 1,7 M58x3
NC30N050000 QC VGF N1 FEMALE 25 35 69,8 104 55 N1 1,8 M58x3
NC29N050002 QC VGF N1 1/2 MALE 25 47 145,7 55 36 N1 1/2 1,9 M58x3
NC30N050002 QC VGF N1 1/2 FEMALE 25 35 69,8 104 55 N1 1/2 2 M58x3
disegno tecnico Gemels
FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC29S050000 QC VGF SAE16 MALE 25 47 143,2 50 36 1 5/16-12UN 1,7 M58x3
NC30S050000 QC VGF SEA16 FEMALE 25 35 69,8 104 55 1 5/16-12UN 1,8 M58x3
NC29S050001 QC VGF SEA20 MALE 25 47 145,7 50 36 1 5/8-12UN 1,8 M58x3
NC30S050001 QC VGF SAE20 FEMALE 25 35 69,8 104 55 1 5/8-12UN 1,9 M58x3
disegno tecnico Gemels
