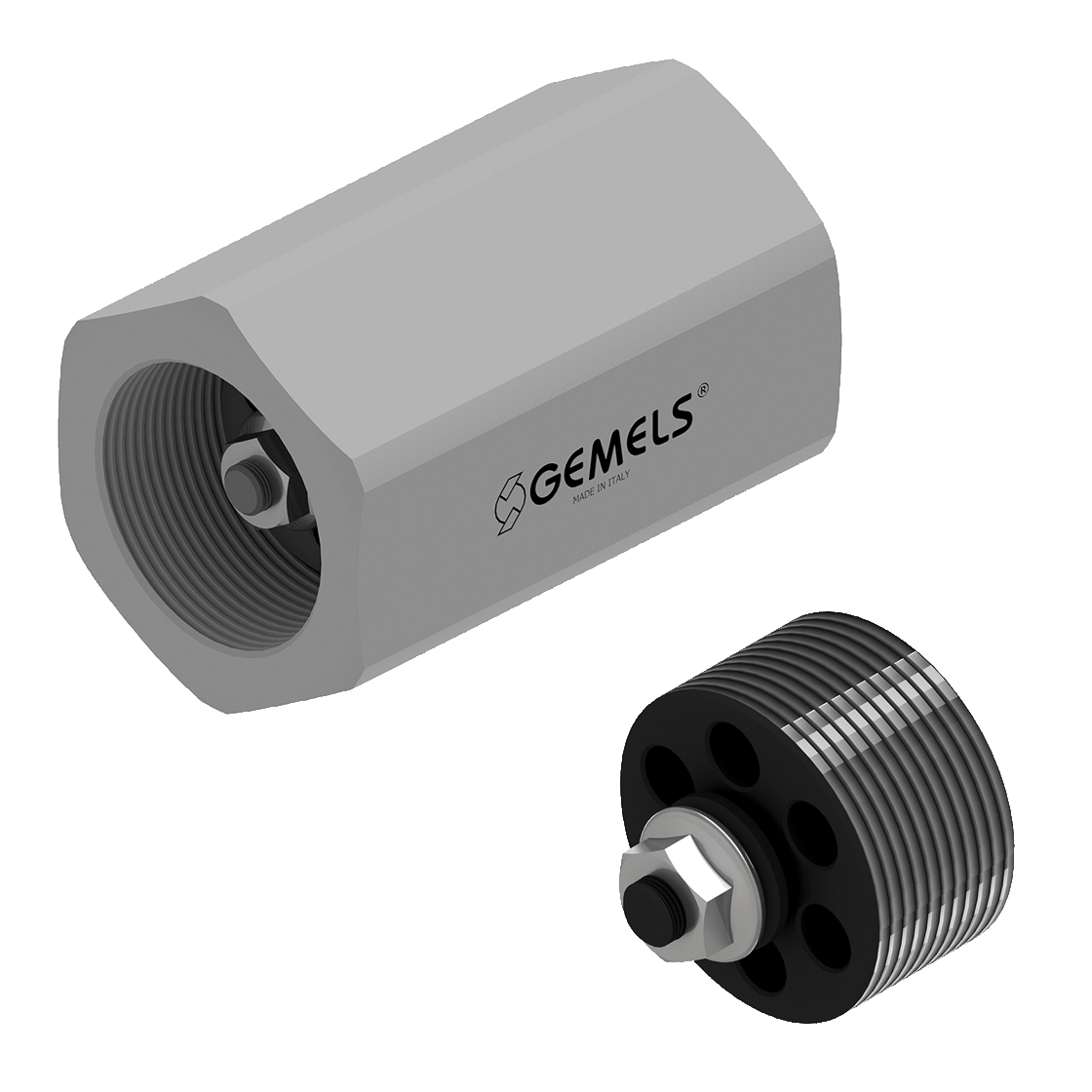

COLLETTORE PER VALVOLA PARACADUTE

VB VUBA

valvole idrauliche per agricultura

Valvola per macchine di sollevamento

Scheda Tecnica

Carbon Steel
Tipo COLLETTORE PER VALVOLA PARACADUTE
Dimensioni dal DN6 al DN25
Filettature BSP-NPT-SAE
Pressione fino a PN350
Temperatura range da -20°C fino a +100°C
pdf ( 1.65 MB )
Dettagli Tecnici
valvola a sfera
VBF - VBM
VB VALVE - COMPONENTS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G540102A01AAPAA VB G 1/4 8.5 2.4 1/4 9.5 8 5 23 0.0065
G540103A01AAPAA VB G 3/8 11 3.5 3/8 12.5 11 5 23 0.0125
G540104A01AAPAA VB G 1/2 13 4.5 1/2 15 13 6 29 0.0235
G540105A01AAPAA VB G 3/4 16 6 3/4 18.5 18 6 34 0.046
G540106A01AAPAA VB G 1 20 7 1 23 21 7.5 40 0.0945
VBF - Female housing
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
C01AA03583A010Z VBF G 1/4 19 G 1/4 1/4 28 48 0.01
C01AA03584A010Z VBF G 3/8 22 G 3/8 3/8 50 52 0.01
C01AA03585A010Z VBF G 1/2 27 G 1/2 1/2 85 60 0.02
C01AA03586A010Z VBF G 3/4 36 G 3/4 3/4 150 72 0.05
C01AA03587A010Z VBF G 1 46 G 1 1 180 85 0.09
VBM - Male housing
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
C01AA03578A010Z VBM G 1/4 19 G 1/4 1/4 28 48 0.01
C01AA03579A010Z VBM G 3/8 22 G 3/8 3/8 50 58 0.01
C01AA03580A010Z VBM G 1/2 27 G 1/2 1/2 85 65 0.02
C01AA03581A010Z VBM G 3/4 36 G 3/4 3/4 150 78 0.05
C01AA03582A010Z VBM G 1 46 G 1 1 180 85 0.09
VB + VBF Assembled (Female-Female)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G480202A0100PAA VB G 1/4 24.2 35.2 1/4 35 see diagram
G480203A0100PAA VB G 3/8 26.2 37.1 3/8 35 see diagram
G480204A0100PAA VB G 1/2 30.3 45.2 1/2 35 see diagram
G480205A0100PAA VB G 3/4 38.1 54.2 3/4 35 see diagram
G480206A0100PAA VB G 1 46.2 66.1 1 35 see diagram
VB + VBM Assembled (Male-Female)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G580302A0100PAA VB G 1/4 24.2 35.2 1/4 35 see diagram
G580303A0100PAA VB G 3/8 26.2 37.1 3/8 35 see diagram
G580304A0100PAA VB G 1/2 30.3 45.2 1/2 35 see diagram
G580305A0100PAA VB G 3/4 38.1 54.2 3/4 35 see diagram
G580306A0100PAA VB G 1 46.2 66.1 1 35 see diagram
