Innesti Rapidi NV

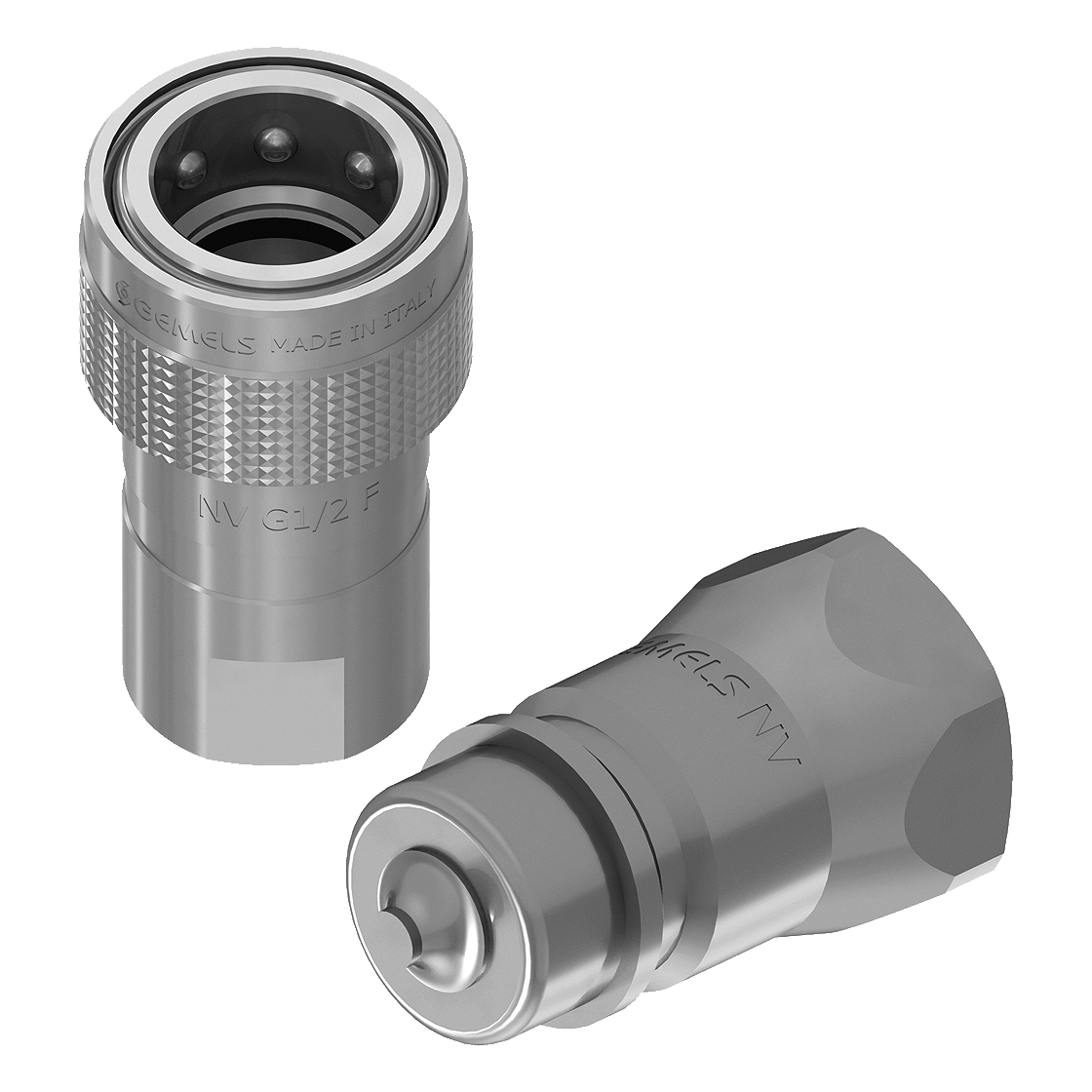

ISO 5675 SERIE NV CON POPPET

innesti rapidi serie NV per agricoltura

ISO 5675

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN6 al DN25
Pressione fino a PN350

Caratteristiche Generali

Disponibili CAPS nei colori: giallo, rosso, blu, verde

pdf ( 1.29 MB )
Dettagli Tecnici
ISO 5675 serie NV con poppet
FEMALE THREAD ISO 1179-1 BSPP WITH POPPET_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC09G010000 QC NV G 1/4 MALE 6.3 35 36 19 14.2 G 1/4 0.043
NC10G010000 QC NV G 1/4 FEMALE 6.3 35 27.6 55.5 22 G 1/4 0.128
NC09G020000 QC NV G 3/8 MALE 10 35 40 24 19 G 3/8 0.075
NC10G020000 QC NV G 3/8 FEMALE 10 35 34 60.5 24 G 3/8 0.2
NC09G030000 QC NV G 1/2 MALE 12.5 35 46 27 20.5 G 1/2 0.085
NC10G030000 QC NV G 1/2 FEMALE 12.5 35 38 68 27 G 1/2 0.27
NC09G040000 QC NV G 3/4 MALE 20 25 53.5 34 28 G 3/4 0.174
NC10G040000 QC NV G 3/4 FEMALE 20 25 48.2 82.5 34 G 3/4 0.515
NC09G050000 QC NV G 1 MALE 25 25 64 41 31.3 G 1 0.258
NC10G050000 QC NV G 1 FEMALE 25 25 56.2 97.5 41 G 1 0.936
disegno tecnico Gemels
FEMALE THREAD ASME B1.20.1 NPT WITH POPPET
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC09N010000 QC NV N 1/4 MALE 6.3 35 36 19 14.2 NPT 1/4 0.044
NC10N010000 QC NV N 1/4 FEMALE 6.3 35 27.6 55.5 22 NPT 1/4 0.13
NC09N020000 QC NV N 3/8 MALE 10 35 40 24 19 NPT 3/8 0.08
NC10N020000 QC NV N 3/8 FEMALE 10 35 34 60.5 24 NPT 3/8 0.2
NC09N030000 QC NV N 1/2 MALE 12.5 35 46 27 20.5 NPT 1/2 0.09
NC10N030000 QC NV N 1/2 FEMALE 12.5 35 38 68 27 NPT 1/2 0.27
NC09N040000 QC NV N 3/4 MALE 20 25 53.5 34 28 NPT 3/4 0.09
NC10N040000 QC NV N 3/4 FEMALE 20 25 48.2 82.5 34 NPT 3/4 0.29
NC09N050000 QC NV N 1 MALE 25 25 64 41 31.3 NPT 1 0.1
NC10N050000 QC NV N 1 FEMALE 25 25 56.2 97.5 41 NPT 1 0.3
disegno tecnico Gemels
Download: Cataloghi e Disegni

QUICK COUPLINGS NV

DATASHEET
pdf ( 1.29 MB )

QUICK COUPLINGS NV

DATASHEET
Il download di alcuni file è riservato alle persone registrate. Se non sei registrato, procedi subito. Clicca qui per registrarti
zip ( 8.70 MB )
QC NV G 1/4 MALE stp ( 1.41 MB )
QC NV G 1/4 FEMALE stp ( 2.08 MB )
QC NV G 3/8 MALE stp ( 2.07 MB )
QC NV G 3/8 FEMALE stp ( 2.23 MB )
QC NV G 1/2 MALE stp ( 1.89 MB )
QC NV G 1/2 FEMALE stp ( 2.02 MB )
QC NV G 3/4 MALE stp ( 2.42 MB )
QC NV G 3/4 FEMALE stp ( 2.56 MB )
QC NV G 1 MALE stp ( 2.95 MB )
QC NV G 1 FEMALE stp ( 2.10 MB )
QC NV N 1/4 MALE stp ( 1.35 MB )
QC NV N 1/4 FEMALE stp ( 2.02 MB )
QC NV N 3/8 MALE stp ( 2.02 MB )
QC NV N 3/8 FEMALE stp ( 2.17 MB )
QC NV N 1/2 MALE stp ( 1.84 MB )
QC NV N 1/2 FEMALE stp ( 1.97 MB )
QC NV N 3/4 MALE stp ( 2.37 MB )
QC NV N 3/4 FEMALE stp ( 2.58 MB )
QC NV N 1 MALE stp ( 2.90 MB )
QC NV N 1 FEMALE stp ( 2.04 MB )
