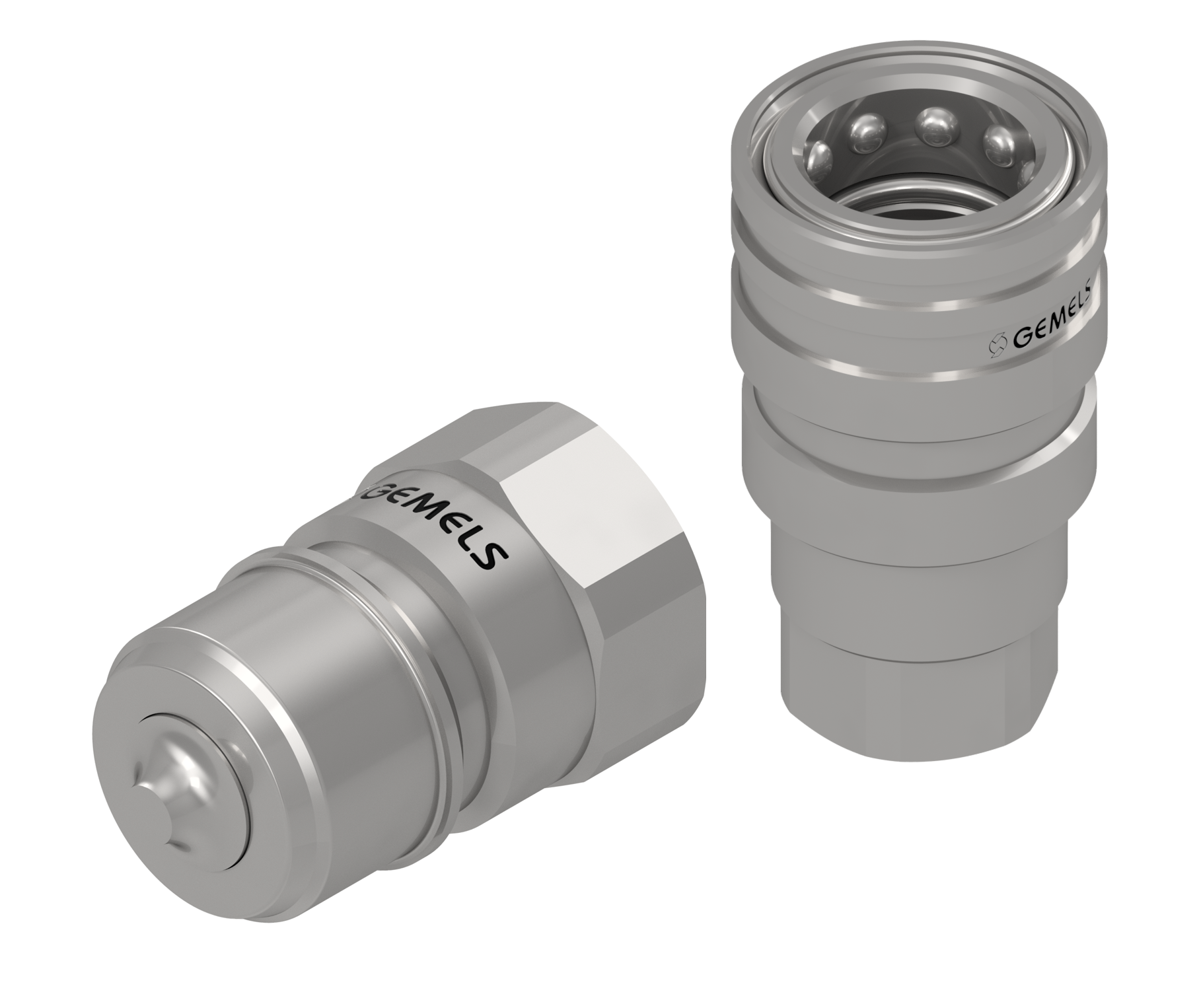

INNESTI RAPIDI

NORDIC - POPPET DV

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni da DN6 a DN25
Pressione fino a PN400

Caratteristiche Generali

Disponibili CAPS nei colori: giallo, rosso, blu, verde

pdf ( 889.59 KB )
Dettagli Tecnici
FEMALE THREAD ISO 1179-1 BSPP_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC45G010000 QC NORDIC G1/4 MALE 6 40 48,2 18 12 G1/4 0,05
NC46G010000 QC NORDIC G1/4 FEMALE 6 40 26 60 21 G1/4 0,15
NC45G020000 QC NORDIC G3/8 MALE 10 33 38 22 19,9 G3/8 0,06
NC46G020000 QC NORDIC G3/8 FEMALE 10 33 35 61 24 G3/8 0,22
NC45G030000 QC NORDIC G1/2 MALE 12,5 34,48275862 42,5 27 24,7 G1/2 0,10
NC46G030000 QC NORDIC G1/2 FEMALE 12,5 34,48275862 41 67,5 30 G1/2 0,33
NC45G040000 QC NORDIC G3/4 MALE 20 33 47 36 32,7 G3/4 0,19
NC46G040000 QC NORDIC G3/4 FEMALE 20 33 52 76,4 38 G3/4 0,58
NC45G050000 QC NORDIC G1 MALE 25 33 56,5 45 40,9 G1 0,35
NC46G050000 QC NORDIC G1 FEMALE 25 33 62 92,4 45 G1 0,97
disegno tecnico Gemels
FEMALE THEREAD NPTF - ANSI B.1.20.3
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC45N010000 QC NORDIC N1/4 MALE 6 48,2 48,2 19 12 N1/4 0,05
NC46N010000 QC NORDIC N1/4 FEMALE 6 40 26 60 21 N1/4 0,15
NC45N020000 QC NORDIC N3/8 MALE 10 33 38 22 19,9 N3/8 0,06
NC46N020000 QC NORDIC N3/8 FEMALE 10 33 35 61,6 24 N3/8 0,22
NC45N030000 QC NORDIC N1/2 MALE 12,5 34,48275862 42,5 27 24,7 N1/2 0,10
NC46N030000 QC NORDIC N1/2 FEMALE 12,5 34,4828 41 67,6 30 N1/2 0,33
NC45N040000 QC NORDIC N3/4 MALE 20 33 47 36 32,7 N3/4 0,19
NC46N040000 QC NORDIC N3/4 FEMALE 20 33 52 76,2 38 0,58
NC45N050000 QC NORDIC N1 MALE 25 33 56,5 45 40,9 N1 0,35
NC46N050000 QC NORDIC N1 FEMALE 25 33 62 92 45 N1 0,97
MALE THREAD ISO 8434-6 BSPP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC47G020000 QC NORDIC G3/8 MALE 10 33 38 22 19,9 G3/8 0,06
NC48G020000 QC NORDIC G3/8 FEMALE 10 33 35 61 24 G3/8 0,22
NC47G030000 QC NORDIC G1/2 MALE 12,5 34,4828 42,5 27 24,7 G1/2 0,10
NC48G030000 QC NORDIC G1/2 FEMALE 12,5 34,4828 41 67,5 30 G1/2 0,33
NC47G040000 QC NORDIC G3/4 MALE 20 33 47 36 32,7 G3/4 0,19
NC48G040000 QC NORDIC G3/4 FEMALE 20 33 52 76,4 38 G3/4 0,58
NC47G050000 QC NORDIC G1 MALE 25 33 56,5 45 40,9 G1 0,35
NC48G050000 QC NORDIC G1 FEMALE 25 33 62 92,4 45 G1 0,97
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC47N020000 QC NORDIC N3/8 MALE 10 33 38 22 19,9 N3/8 0,06
NC48N020000 QC NORDIC N3/8 FEMALE 10 33 35 61,6 24 N3/8 0,22
NC47N030000 QC NORDIC N1/2 MALE 12,5 34,4828 42,5 27 24,7 N1/2 0,10
NC48N030000 QC NORDIC N1/2 FEMALE 12,5 34,4828 41 67,6 30 N1/2 0,33
NC47N040000 QC NORDIC N3/4 MALE 20 33 47 36 32,7 N3/4 0,19
NC48N040000 QC NORDIC N3/4 FEMALE 20 33 52 76,2 38 N3/4 0,58
NC47N050000 QC NORDIC N1 MALE 25 33 56,5 45 40,9 N1 0,35
NC48N050000 QC NORDIC N1 FEMALE 25 33 62 92 45 N1 0,97
disegno tecnico Gemels
