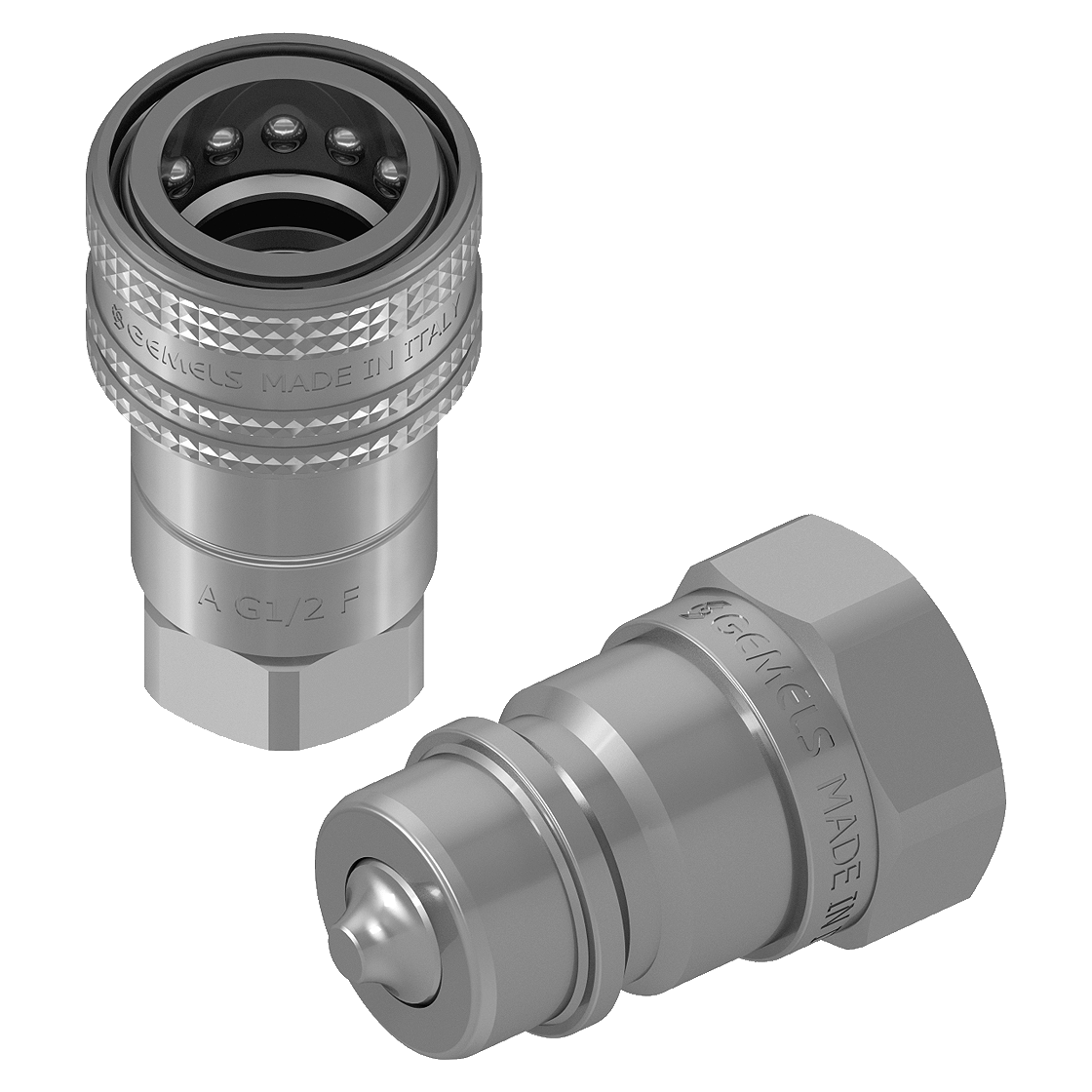

Innesti Rapidi ISO A

ISO 7241/A CON POPPET

innesti rapidi iso A per agricoltura

ISO 7241/A

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN6 al DN50
Pressione fino a PN420
Stainless Steel
Tipo Innesti rapidi
Dimensioni dal DN6 al DN50
Pressione fino a PN300

Caratteristiche Generali

Disponibili CAPS nei colori: giallo, rosso, blu, verde

pdf ( 1.50 MB )
Dettagli Tecnici
ISO 7241/A CON POPPET
FEMALE THREAD ISO 1179-1 BSPP WITH POPPET_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01G010000 QC ISO A G 1/4 MALE 6.3 42 35.5 19 11.86 G1/4 0.037
NC02G010000 QC ISO A G 1/4 FEMALE 6.3 42 25 49.6 19 G1/4 0.11
NC01G020000 QC ISO A G 3/8 MALE 10 42 39.5 22 17.3 G3/8 0.05
NC02G020000 QC ISO A G 3/8 FEMALE 10 42 32 57 22 G3/8 0.15
NC01G030000 QC ISO A G 1/2 MALE 12.5 35 44 27 20.5 G1/2 0.0924
NC02G030000 QC ISO A G 1/2 FEMALE 12.5 35 38.25 66 27 G1/2 0.227
NC01G040000 QC ISO A G 3/4 MALE 20 25 55.5 34 29.1 G3/4 0.2
NC02G040000 QC ISO A G 3/4 FEMALE 20 25 48 83 34 G3/4 0.49
NC01G050000 QC ISO A G 1 MALE 25 25 66 41 34.34 G 1 0.311
NC02G050000 QC ISO A G 1 FEMALE 25 25 56 100 41 G 1 0.7825
NC01G060000 QC ISO A G 1 1/4 MALE 31.5 25 74.8 50 45 G 1 1/4 0.537
NC02G060000 QC ISO A G 1 1/4 FEMALE 31.5 25 71 117.5 50 G 1 1/4 1.243
NC01G070000 QC ISO A G 1 1/2 MALE 40 20 84 60 55 G 1 1/2 0.881
NC02G070000 QC ISO A G 1 1/2 FEMALE 40 20 86 135 60 G 1 1/2 2.126
NC01G080000 QC ISO A G 2 MALE 50 15 102.5 75 65.1 G 2 1.613
NC02G080000 QC ISO A G 2 FEMALE 50 15 103 162.5 75 G 2 3.961
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01G010001 QC ISO A G 1/4 MALE 6.3 30 34 19 11.8 G1/4 0.037
NC02G010001 QC ISO A G 1/4 FEMALE 6.3 30 26 58.5 19 G1/4 0.11
NC01G02S000 QC ISO A G 3/8 MALE 10 25 40 22 17.3 G3/8 0.05
NC02G02S000 QC ISO A G 3/8 FEMALE 10 25 30 64 22 G3/8 0.15
NC01G030001 QC ISO A G 1/2 MALE 12.5 25 46 27 20.5 G1/2 0.0924
NC02G030001 QC ISO A G 1/2 FEMALE 12.5 25 38 73 27 G1/2 0.227
NC01G04S000 QC ISO A G 3/4 MALE 20 25 54 36 29.1 G3/4 0.2
NC02G04S000 QC ISO A G 3/4 FEMALE 20 25 48 87.5 36 G3/4 0.49
NC01G050001 QC ISO A G 1 MALE 25 20 63 41 34.3 G 1 0.311
NC02G050001 QC ISO A G 1 FEMALE 25 20 54 103 38 G 1 0.7825
NC01G06S000 QC ISO A G 1 1/4 MALE 31.5 10 69 50 45 G 1 1/4 0.537
NC02G06S000 QC ISO A G 1 1/4 FEMALE 31.5 10 70 115 50 G 1 1/4 1.243
NC01G07S000 QC ISO A G 1 1/2 MALE 40 8 73 60 55 G 1 1/2 0.881
NC02G07S000 QC ISO A G 1 1/2 FEMALE 40 8 81 123 60 G 1 1/2 2.126
NC01G08S000 QC ISO A G 2 MALE 50 6 90 70 65.1 G 2 1.613
NC02G08S000 QC ISO A G 2 FEMALE 50 6 103 147 70 G 2 3.961
disegno tecnico Gemels
FEMALE THREAD ASME B1.20.1 NPT WITH POPPET
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01N010000 QC ISO A N 1/4 MALE 6.3 42 35.5 19 11.86 N1/4 0.037
NC02N010000 QC ISO A N 1/4 FEMALE 6.3 42 25 49.6 19 N1/4 0.11
NC01N020000 QC ISO A N 3/8 MALE 10 42 39.5 22 17.3 N3/8 0.05
NC02N020000 QC ISO A N 3/8 FEMALE 10 42 32 57 22 N3/8 0.15
NC01N030000 QC ISO A N 1/2 MALE 12.5 35 44 27 20.5 N1/2 0.0924
NC02N030000 QC ISO A N 1/2 FEMALE 12.5 35 38.25 66 27 N1/2 0.227
NC01N040000 QC ISO A N 3/4 MALE 20 25 55.5 34 29.1 N3/4 0.2
NC02N040000 QC ISO A N 3/4 FEMALE 20 25 48 83 34 N3/4 0.49
NC01N050000 QC ISO A N 1 MALE 25 25 66 41 34.34 N 1 0.311
NC02N050000 QC ISO A N 1 FEMALE 25 25 56 100 41 G 1 0.7825
NC01N060000 QC ISO A N 1 1/4 MALE 31.5 25 74.8 50 45 N1 1/4 0.537
NC02N060000 QC ISO A N 1 1/4 FEMALE 31.5 25 71 117.5 50 N1 1/4 1.243
NC01N070000 QC ISO A N 1 1/2 MALE 40 20 84 60 55 N1 1/2 0.881
NC02N070000 QC ISO A N 1 1/2 FEMALE 40 20 86 135 60 N1 1/2 2.126
NC01N080000 QC ISO A N 2 MALE 50 15 102.5 75 65.1 N 2 1.613
NC02N080000 QC ISO A N 2 FEMALE 50 15 103 162.5 75 N 2 3.961
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01N010001 QC ISO A N 1/4 MALE 6.3 30 34 19 11.8 N1/4 0.037
NC02N010001 QC ISO A N 1/4 FEMALE 6.3 30 26 58.5 19 N1/4 0.11
NC01N020001 QC ISO A N 3/8 MALE 10 25 40 22 17.3 N3/8 0.05
NC02N020001 QC ISO A N 3/8 FEMALE 10 25 30 64 22 N3/8 0.15
NC01N030001 QC ISO A N 1/2 MALE 12.5 25 46 27 20.5 N1/2 0.0924
NC02N030001 QC ISO A N 1/2 FEMALE 12.5 25 38 73 27 N1/2 0.227
NC01N040001 QC ISO A N 3/4 MALE 20 25 54 36 29.1 N3/4 0.2
NC02N040001 QC ISO A N 3/4 FEMALE 20 25 48 87.5 36 N3/4 0.49
NC01N050001 QC ISO A N 1 MALE 25 20 63 41 34.3 N 1 0.311
NC02N050001 QC ISO A N 1 FEMALE 25 20 54 103 38 G 1 0.7825
NC01N060001 QC ISO A N 1 1/4 MALE 31.5 10 69 50 45 N1 1/4 0.537
NC02N060001 QC ISO A N 1 1/4 FEMALE 31.5 10 70 115 50 N1 1/4 1.243
NC01N070001 QC ISO A N 1 1/2 MALE 40 8 73 60 55 N1 1/2 0.881
NC02N070001 QC ISO A N 1 1/2 FEMALE 40 8 81 126 60 N1 1/2 2.126
NC01N080001 QC ISO A N 2 MALE 50 6 90 70 65.1 N 2 1.613
NC02N080001 QC ISO A N 2 FEMALE 50 6 103 147 70 N 2 3.961
disegno tecnico Gemels
FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB WITH POPPET_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01S010000 QC ISO A SAE4 MALE 6.3 42 35.5 19 11.86 SAE4 0.037
NC02S010000 QC ISO A SAE4 FEMALE 6.3 42 25 49.6 19 SAE4 0.11
NC01S020000 QC ISO A SAE6 MALE 10 42 39.5 22 17.3 SAE6 0.05
NC02S020000 QC ISO A SAE6 FEMALE 10 42 32 57 22 SAE6 0.15
NC01S030000 QC ISO A SAE8 MALE 12.5 35 44 27 20.5 SAE8 0.0924
NC02S030000 QC ISO A SAE8 FEMALE 12.5 35 38.25 66 27 SAE8 0.227
NC01S040000 QC ISO A SAE12 MALE 20 25 55.5 34 29.1 SAE12 0.2
NC02S040000 QC ISO A SAE12 FEMALE 20 25 48 83 34 SAE12 0.49
NC01S050000 QC ISO A SAE16 MALE 25 25 66 41 34.34 SAE16 0.311
NC02S050000 QC ISO A SAE16 FEMALE 25 25 56 100 41 SAE16 0.7825
NC01S060000 QC ISO A SAE20 MALE 31.5 25 74.8 50 45 SAE20 0.537
NC02S060000 QC ISO A SAE20 FEMALE 31.5 25 71 117.5 50 SAE20 1.243
NC01S070000 QC ISO A SAE24 MALE 40 20 84 60 55 SAE24 0.881
NC02S070000 QC ISO A SAE24 FEMALE 40 20 86 135 60 SAE24 2.126
NC01S080000 QC ISO A SAE32 MALE 50 15 102.5 75 65.1 SAE32 1.613
NC02S080000 QC ISO A SAE32 FEMALE 50 15 103 162.5 75 SAE32 3.961
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01S01S000 QC ISO A SAE4 MALE 6.3 30 34 19 11.8 SAE4 0.037
NC02S01S000 QC ISO A SAE4 FEMALE 6.3 30 26 58.5 19 SAE4 0.11
NC01S02S000 QC ISO A SAE6 MALE 10 25 40 22 17.3 SAE6 0.05
NC02S02S000 QC ISO A SAE6 FEMALE 10 25 30 64 22 SAE6 0.15
NC01S03S000 QC ISO A SAE8 MALE 12.5 25 46 27 20.5 SAE8 0.0924
NC02S03S000 QC ISO A SAE8 FEMALE 12.5 25 38 73 27 SAE8 0.227
NC01S04S000 QC ISO A SAE12 MALE 20 25 54 36 29.1 SAE12 0.2
NC02S04S000 QC ISO A SAE12 FEMALE 20 25 48 87.5 36 SAE12 0.49
NC01S05S000 QC ISO A SAE16 MALE 25 20 63 41 34.3 SAE16 0.311
NC02S05S000 QC ISO A SAE16 FEMALE 25 20 54 103 38 SAE16 0.7825
NC01S06S000 QC ISO A SAE20 MALE 31.5 10 69 50 45 SAE20 0.537
NC02S06S000 QC ISO A SAE20 FEMALE 31.5 10 70 115 50 SAE20 1.243
NC01S07S000 QC ISO A SAE24 MALE 40 8 73 60 55 SAE24 0.881
NC02S07S000 QC ISO A SAE24 FEMALE 40 8 81 126 60 SAE24 2.126
NC01S08S000 QC ISO A SAE32 MALE 50 6 90 70 65.1 SAE32 1.613
NC02S08S000 QC ISO A SAE32 FEMALE 50 6 103 147 70 SAE32 3.961
disegno tecnico Gemels
Download: Cataloghi e Disegni

QUICK COUPLINGS ISO A

DATASHEET
pdf ( 1.50 MB )

ISO A

DRAWING
Il download di alcuni file è riservato alle persone registrate. Se non sei registrato, procedi subito. Clicca qui per registrarti
zip ( 5.88 MB )
QC ISO A N 1/4 MALE stp ( 1.54 MB )
QC ISO A N 1/4 FEMALE stp ( 2.05 MB )
QC ISO A N 3/8 MALE stp ( 1.90 MB )
QC ISO A N 3/8 FEMALE stp ( 2.26 MB )
QC ISO A N 1/2 MALE stp ( 1.81 MB )
QC ISO A N 1/2 FEMALE stp ( 2.26 MB )
QC ISO A N 3/4 MALE stp ( 1.85 MB )
QC ISO A N 3/4 FEMALE stp ( 2.29 MB )
QC ISO A N 1 MALE stp ( 1.70 MB )
QC ISO A N 1 FEMALE stp ( 2.06 MB )
QC ISO A N 1 1/4 MALE stp ( 1.82 MB )
QC ISO A N 1 1/4 FEMALE stp ( 2.32 MB )
QC ISO A N 1 1/2 MALE stp ( 1.80 MB )
QC ISO A N 1 1/2 FEMALE stp ( 2.22 MB )
QC ISO A N 2 MALE stp ( 1.74 MB )
QC ISO A N 2 FEMALE stp ( 2.25 MB )
