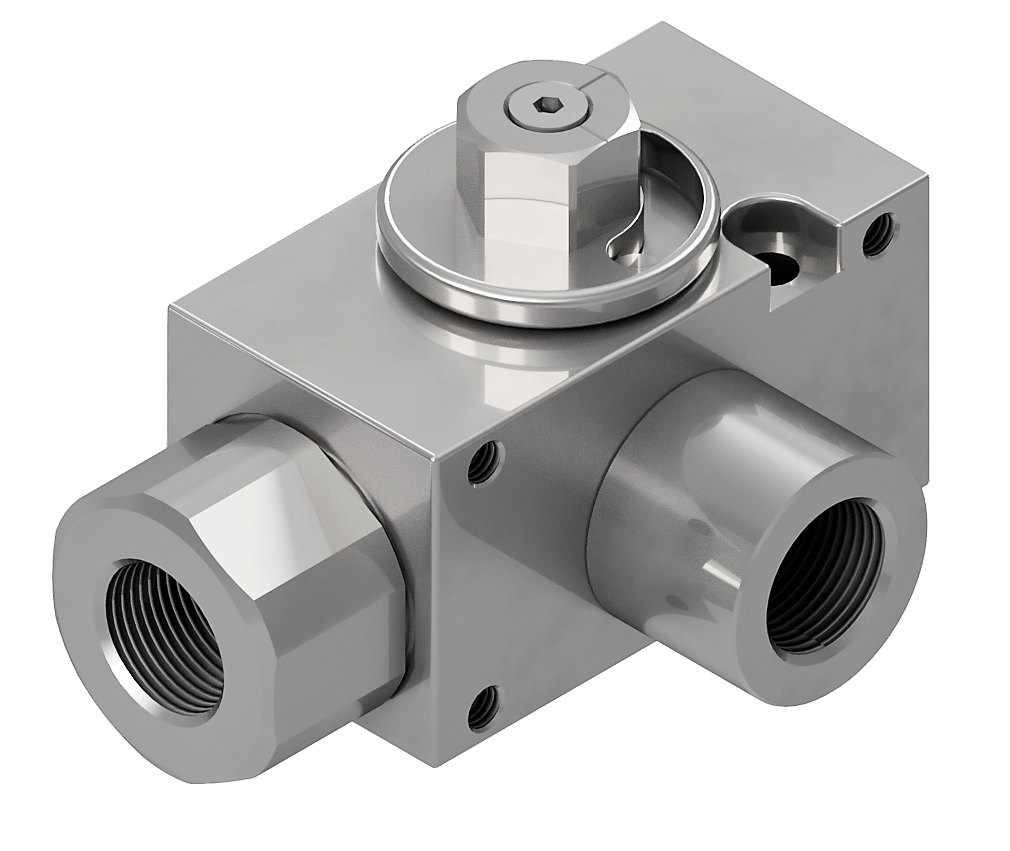

Valvola a sfera per settore estrazione e minerario

GV3K

valvola a sfera per industria pesante ed estrazione e minerario

3 vie alta pressione

Scheda Tecnica

Carbon Steel

Tipo VALVOLA A SFERA 3 VIE

Dimensioni dal DN10 al DN20

Filettature BSP-NPT-SAE / ISO6162-1

Pressione fino a PN500/S6000

Temperatura range da -20°C fino a +100°C

Caratteristiche Generali

DISPONIBILE PIASTRA SALDATA DI MONTAGGIO LATERALE ed INFERIORE

pdf ( 1.62 MB )

Composizione Materiali

valvola a sfera 3 WAY HIGH PRESSURE

POS	Description	Q.ty	Carbon Steel	Stainless Steel
1	Body	1	1,0737
2	Adapter	1	1,0737
3	Ball	1	1,0737
4	Stem	1	1,0737
5	Ball seat	2	POM
6	Pin	1	1,0737
7	Stem ring	1	POM
8	Spring UNl17223-1	1	1,0116
9	Spring ball	1	1,0116
10	Stem o-ring	1	FKM
11	Adapter o-ring	1	FKM
12	Adapter o-ring	1	FKM
13	Washer	1	1,0737
14	Screw	1	DIN 7991 8.8
15	Caps	2	PVC

Dettagli Tecnici

DIN/ISO 228 BSP

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CH1 mm	CS	D mm	D1 mm	d mm	⌀d mm	ØD mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	ØM1 mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
G440203A0102RAA			GV3K G 3/8	10		50	43			20.4				88.5											70						14.1												19	57.1				37			56.5				60.8			7		M6										10			G 3/8						10.5									6.25	6.5			16				9		54		24			6.6		6		0.96	56					33
G440204A0102PAA			GV3K G 1/2	13		50	45			21.7				103.4											80						14.1												19	59.1				45			66.5				62.9			8		M8										13			G 1/2						10.5									6.25	6.5			23				9		57		32			6.6		6		1.36	64					33
G440205A0102PAA			GV3K G 3/4	20		35	55			23.4				129.5											101						18.5												24	73.5				55			85				78			10.5		M8										20			G 3/4						13.5									9	7.5			25.5				14		75.5		40			8		6		2.57	80					43

disegno tecnico Gemels

ANSI/ASME B1.20.1 NPT

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CH1 mm	CS	D mm	D1 mm	d mm	⌀d mm	ØD mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	ØM1 mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
G440903A0102RAA			GV3K N 3/8	10		50	43			20.4				88.5											70						14.1												19	57.1				37			61				60.8			7		M6										10			N 3/8						10.5									6.25	6.5			16				9		54		24			6.6		6		0.96	56					33
G440904A0102PAA			GV3K N 1/2	13		50	45			21.7				103.4											80						14.1												19	59.1				45			66.5				62.9			8		M8										13			N 1/2						10.5									6.25	6.5			23				9		57		32			6.6		6		1.362	64					33
G440905A0102PAA			GV3K N 3/4	20		35	55			23.4				129.5											101						18.5												24	73.5				55			85				78			10.5		M8										20			N 3/4						13.5									9	7.5			25.5				14		75.5		40			8		6		2.57	80					43

disegno tecnico Gemels

SAE J1926-1

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CH1 mm	CS	D mm	D1 mm	d mm	⌀d mm	ØD mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	ØM1 mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
G440B03A0102RAA			GV3K SAE6	10		50	43			20.4				88.5											70						14.1												19	57.1				37			61				60.8			7		M6										10			SAE6						10.5									6.25	6.5			16				9		54		24			6.6		6		0.96	56					33
G440B04A0102PAA			GV3K SAE8	13		50	45			21.7				103.4											80						14.1												19	59.1				45			66.5				62.9			8		M8										13			SAE8						10.5									6.25	6.5			23				9		57		32			6.6		6		1.36	64					33
G440B05A0102PAA			GV3K SAE12	20		35	55			23.4				129.5											101						18.5												24	73.5				55			85				78			10.5		M8										20			SAE12						13.5									9	7.5			25.5				14		75.5		40			8		6		2.57	80					43

disegno tecnico Gemels

Download: Cataloghi e Disegni

GV3K

DATASHEET

pdf ( 1.62 MB )
