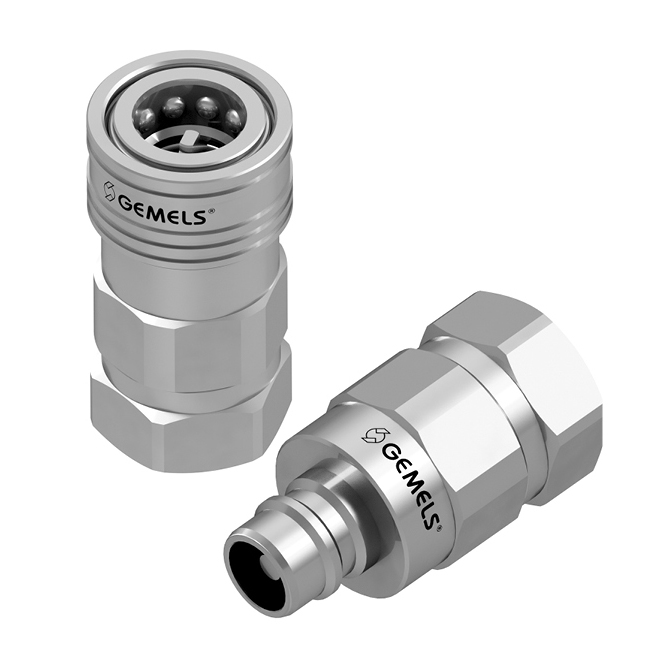

Innesti Rapidi GUS

GUS

innesto rapido per settore industriale e agricoltura

US Market

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni da DN6 a DN40
Pressione fino a PN270
Stainless Steel
Tipo Innesti rapidi
Dimensioni da DN6 a DN40
Pressione fino a PN270
Carbon Steel
pdf ( 1.11 MB )
Dettagli Tecnici
innesto rapido per industriale
FEMALE THREAD ASME B1.20.1 NPT WITH POPPET
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC37N010000 QC GUS N 1/4 MALE 6.3 27 49 22 10.8 N1/4 0.08
NC38N010000 QC GUS N 1/4 FEMALE 6.3 27 24 49.8 22 N1/4 0.1
NC37N020000 QC GUS N 3/8 MALE 10 30 57.3 24 13 N3/8 0.1
NC38N020000 QC GUS N 3/8 FEMALE 10 30 27 57.3 24 N3/8 0.14
NC37N030000 QC ISO A N 1/2 MALE 12,5 22 62.3 30 16 N1/2 0.17
NC38N030000 QC GUS N 1/2 FEMALE 12,5 22 34 64.4 30 N1/2 0.23
NC37N040000 QC GUS N 3/4 MALE 20 19 63.5 36 23,4 N3/4 0.24
NC38N040000 QC GUS N 3/4 FEMALE 20 19 42 64.2 36 N3/4 0.35
NC37N050000 QC GUS N 1 MALE 25 15 68.4 46 29,5 N 1 0.4
NC38N050000 QC GUS N 1 FEMALE 25 15 50,5 71 46 N 1 0.55
NC37N060000 QC ISO A N 1 1/4 MALE 31,5 11 91 50 36,1 N1 1/4 0.6
NC38N060000 QC GUS N 1 1/4 FEMALE 31,5 11 56 96.5 50 N1 1/4 0.8
NC37N070000 QC GUS N 1 1/2 MALE 40 11 85 65 43,6 N1 1/2 1
NC38N070000 QC GUS N 1 1/2 FEMALE 40 11 70 90.2 65 N1 1/2 1.3
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC37N01S000 QC GUS N 1/4 MALE 6,3 27 49 22 10.8 N1/4 0.08
NC38N01S000 QC GUS N 1/4 FEMALE 6,3 27 24 49.8 22 N1/4 0.1
NC37N02S000 QC GUS N 3/8 MALE 10 30 57.3 24 13 N3/8 0.1
NC38N02S000 QC GUS N 3/8 FEMALE 10 30 27 57.3 24 N3/8 0.14
NC37N03S000 QC ISO A N 1/2 MALE 12.5 22 62.3 30 16 N1/2 0.17
NC38N03S000 QC GUS N 1/2 FEMALE 12.5 22 34 64.4 30 N1/2 0.23
NC37N04S000 QC GUS N 3/4 MALE 20 19 63.5 36 23.4 N3/4 0.24
NC38N04S000 QC GUS N 3/4 FEMALE 20 19 42 64.2 36 N3/4 0.35
NC37N05S000 QC GUS N 1 MALE 25 15 68.4 46 29.5 N 1 0.4
NC38N05S000 QC GUS N 1 FEMALE 25 15 50.5 71 46 N 1 0.55
NC37N06S000 QC ISO A N 1 1/4 MALE 31,5 11 91 50 36.1 N1 1/4 0.6
NC38N06S000 QC GUS N 1 1/4 FEMALE 31,5 11 56 96.5 50 N1 1/4 0.8
NC37N07S000 QC GUS N 1 1/2 MALE 40 11 85 65 43.6 N1 1/2 1
NC38N07S000 QC GUS N 1 1/2 FEMALE 40 11 70 90.2 65 N1 1/2 1.3
disegno tecnico Gemels
Download: Cataloghi e Disegni

QUICK COUPLINGS GUS

DATASHEET
pdf ( 1.11 MB )
