Valvole GRS

GRS

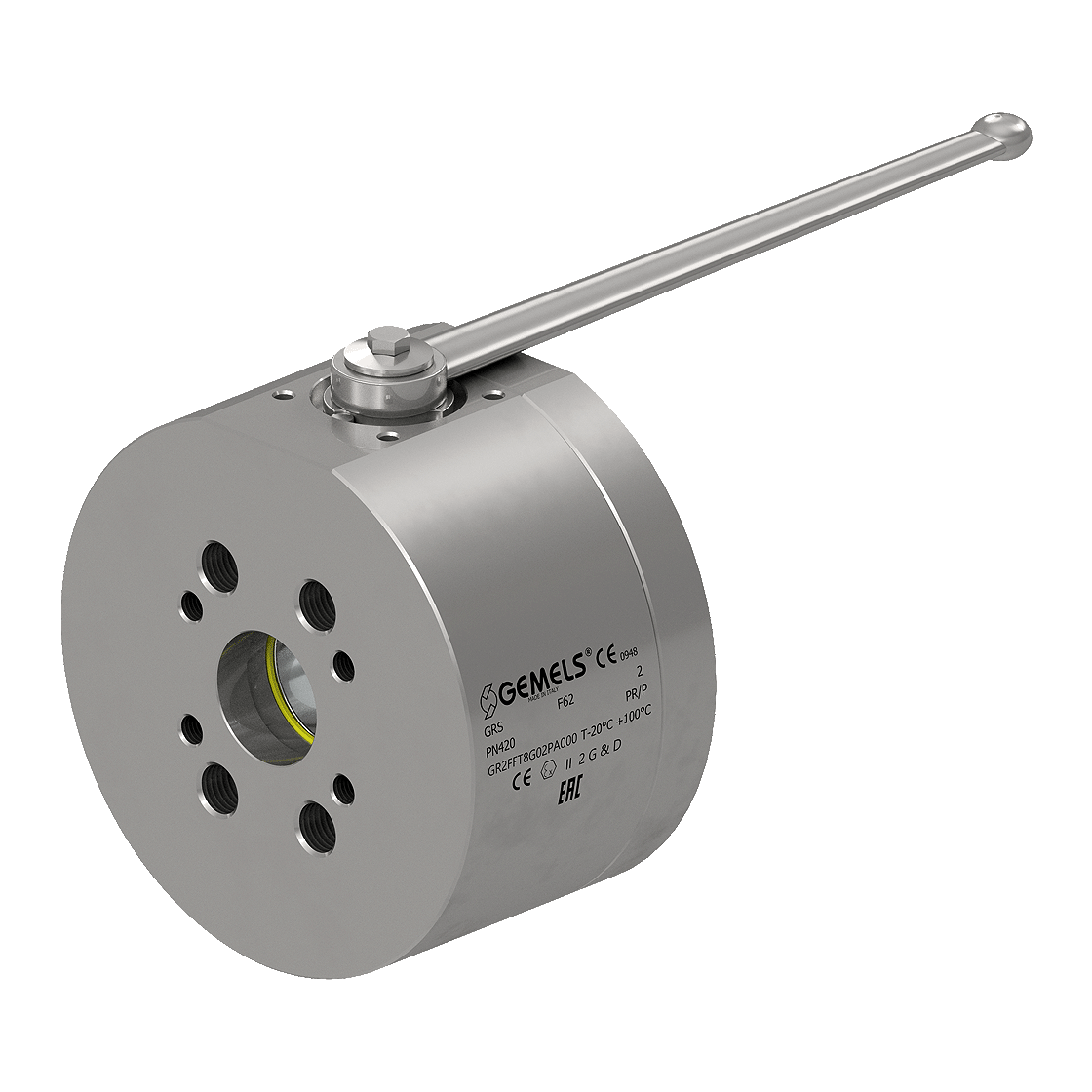

valvola a sfera per siderurgia

2 WAY HIGH PRESSURE

Scheda Tecnica

Carbon Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN13 al DN125
Filettature ISO6162-1 / ISO6162 , (SAE J518)
Pressione fino a PN420/S6000
Temperatura range da -20°C fino a +100°C
Stainless Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN13 al DN125
Filettature ISO6162-1 / ISO6162 , (SAE J518)
Pressione fino a PN420/S6000
Temperatura range da -30°C fino a +100°C
Visualizza Accessori
pdf ( 1.21 MB )
Composizione Materiali
GRS valvola
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0570 1,4404
2 Flange 1 1,0570 1,4404
3 Ball 1 1,0570 1,4404
4 Stem 1 1,4542 1,4542
5 Seat 2 POM POM
6 Handle 1 1,0116 1,0116
7 Washer 1 1,0116 1,0116
8 Washer 1 1,0116 1,0116
9 Flange Back-Up 1 PTFE PTFE
10 Stem Back-Up 1 PTFE PTFE
11 Stem Ring 1 PTFE PTFE
12 Pin 1 1,0737 1,4404
13 Flange o-ring 1 NBR NBR
14 Stem o-ring 2 NBR NBR
15 Seeger 1 1,4301 1,4301
16 T.C.E.I. Screw 8 DIN6921 8.8 ISO4762 A4
17 T.E. Screw 1 DIN6921 8.8 ISO4762 A4
Dettagli Tecnici
Valvola a sfera 2vie
SAE J518 S3000
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FFT3F022A000 GRS3 13 21 67 28 75 58 11 78.3 78 110 121 F03 M8 13 M5 9 36 2.405 17.48 38.1
GR2FFT4F022A000 GRS3 20 21 85.5 36.5 80 60 14 100 103 180 132 F05 M10 20 M6 14 50 3.902 22.2 47.6
GR2FFT5F022A000 GRS3 25 21 98.5 39.5 88 69 14 113 118 180 142 F05 M10 25 M6 14 50 6.317 26.2 52.4
GR2FFT6F02PA000 GRS3 32 21 143.5 70.9 100 73 14 162 145 300 163 F05 M10 32 M6 17 50 12.228 30.2 58.7
GR2FFT7F02PA000 GRS3 40 21 160 78 110 80 14 178.5 165 300 180 F05 M12 38 M6 17 50 16.867 35.7 69.8
GR2FFT8F02PA000 GRS3 50 21 192 93 116 90 14 205.5 196 300 205 F07 M12 48 M8 17 70 25.606 42.9 77.8
GR2FFT9F02PA000 GRS3 65 17.5 198 93 150 107 20.5 212 203 600 266 F07 M12 63 M8 19 70 32.717 50.8 88.9
GR2FFTAF02PA000 GRS3 80 16 205 100 150 107 22 227.5 210 600 277 F07 M16 73 M8 19 70 36.413 61.9 106.4
GR2FFTBF02PA000 GRS3 100 3.5 251 122 170 132 27 278 258 600 326 F10 M16 95 M10 24 102 61.273 77.9 130.2
GR2FFTCF02PA000 GRS3 125 3.5 288 140 210 160 35 322 310 600 389 F12 M16 115 M12 36 125 98.048 92.1 152.4
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FFT3F044A000 GRS3 13 21 67 28 75 58 11 78.3 78 110 121 F03 M8 13 M5 9 36 2.405 17.48 38.1
GR2FFT4F044A000 GRS3 20 21 85.5 36.5 80 60 14 100 103 180 132 F05 M10 20 M6 14 50 3.902 22.2 47.6
GR2FFT5F044A000 GRS3 25 21 98.5 39.5 88 69 14 113 118 180 142 F05 M10 25 M6 14 50 6.317 26.2 52.4
GR2FFT6F04NA000 GRS3 32 21 143.5 70.9 100 73 14 162 145 300 163 F05 M10 32 M6 17 50 12.228 30.2 58.7
GR2FFT7F04NA000 GRS3 40 21 160 78 110 80 14 178.5 165 300 180 F05 M12 38 M6 17 50 16.867 35.7 69.8
GR2FFT8F04NA000 GRS3 50 21 192 93 116 90 14 205.5 196 300 205 F07 M12 48 M8 17 70 25.606 42.9 77.8
GR2FFT9F04NA000 GRS3 65 17.5 198 93 150 107 20.5 212 203 600 266 F07 M12 63 M8 19 70 32.717 50.8 88.9
GR2FFTAF04NA000 GRS3 80 16 205 100 150 107 22 227.5 210 600 277 F07 M16 73 M8 19 70 36.413 61.9 106.4
GR2FFTBF04NA000 GRS3 100 3.5 251 122 170 132 27 278 258 600 326 F10 M16 95 M10 24 102 61.273 77.9 130.2
GR2FFTCF04NA000 GRS3 125 3.5 288 140 210 160 35 322 310 600 389 F12 M16 115 M12 36 125 98.048 92.1 152.4
SAE J518 S3000 UNC
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FUT3F022A000 GRS3 13 21 67 28 75 58 11 78.3 78 110 121 F03 5/16 UNC 13 M5 9 36 2.405 17.48 38.1
GR2FUT4F022A000 GRS3 20 21 85.5 36.5 80 60 14 100 103 180 132 F05 3/8 UNC 20 M6 14 50 3.902 22.2 47.6
GR2FUT5F022A000 GRS3 25 21 98.5 39.5 88 69 14 113 118 180 142 F05 3/8 UNC 25 M6 14 50 6.317 26.2 52.4
GR2FUT6F02PA000 GRS3 32 21 143.5 70.9 100 73 14 162 145 300 163 F05 7/16 UNC 32 M6 17 50 12.228 30.2 58.7
GR2FUT7F02PA000 GRS3 40 21 160 78 110 80 14 178.5 165 300 180 F05 1/2 UNC 38 M6 17 50 16.867 35.7 69.8
GR2FUT8F02PA000 GRS3 50 21 192 93 116 90 14 205.5 196 300 205 F07 1/2 UNC 48 M8 17 70 25.606 42.9 77.8
GR2FUT9F02PA000 GRS3 65 17.5 198 93 150 107 20.5 212 203 600 266 F07 1/2 UNC 63 M8 19 70 32.717 50.8 88.9
GR2FUTAF02PA000 GRS3 80 16 205 100 150 107 22 227.5 210 600 277 F07 5/8 UNC 73 M8 19 70 36.413 61.9 106.4
GR2FUTBF02PA000 GRS3 100 3.5 251 122 170 132 27 278 258 600 326 F10 5/8 UNC 95 M10 24 102 61.273 77.9 130.2
GR2FUTCF02PA000 GRS3 125 3.5 288 140 210 160 35 322 310 600 389 F12 5/8 UNC 115 M12 36 125 98.048 92.1 152.4
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FUT3F044A000 GRS3 13 21 67 28 75 58 11 78.3 78 110 121 F03 5/16 UNC 13 M5 9 36 2.405 17.48 38.1
GR2FUT4F044A000 GRS3 20 21 85.5 36.5 80 60 14 100 103 180 132 F05 3/8 UNC 20 M6 14 50 3.902 22.2 47.6
GR2FUT5F044A000 GRS3 25 21 98.5 39.5 88 69 14 113 118 180 142 F05 3/8 UNC 25 M6 14 50 6.317 26.2 52.4
GR2FUT6F04NA000 GRS3 32 21 143.5 70.9 100 73 14 162 145 300 163 F05 7/16 UNC 32 M6 17 50 12.228 30.2 58.7
GR2FUT7F04NA000 GRS3 40 21 160 78 110 80 14 178.5 165 300 180 F05 1/2 UNC 38 M6 17 50 16.867 35.7 69.8
GR2FUT8F04NA000 GRS3 50 21 192 93 116 90 14 205.5 196 300 205 F07 1/2 UNC 48 M8 17 70 25.606 42.9 77.8
GR2FUT9F04NA000 GRS3 65 17.5 198 93 150 107 20.5 212 203 600 266 F07 1/2 UNC 63 M8 19 70 32.717 50.8 88.9
GR2FUTAF04NA000 GRS3 80 16 205 100 150 107 22 227.5 210 600 277 F07 5/8 UNC 73 M8 19 70 36.413 61.9 106.4
GR2FUTBF04NA000 GRS3 100 3.5 251 122 170 132 27 278 258 600 326 F10 5/8 UNC 95 M10 24 102 61.273 77.9 130.2
GR2FUTCF04NA000 GRS3 125 3.5 288 140 210 160 35 322 310 600 389 F12 5/8 UNC 115 M12 36 125 98.048 92.1 152.4
SAE J518 S6000
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FFT3G022A000 GRS6 13 42 67 28 75 58 11 78.3 78 110 121 F03 M8 13 M5 9 36 2.405 18.24 40.49
GR2FFT4G022A000 GRS6 20 42 85.5 36.5 80 60 14 100 103 180 132 F05 M10 20 M6 14 50 3.902 23.8 50.8
GR2FFT5G022A000 GRS6 25 42 98.5 39.5 88 69 14 113 118 180 142 F05 M12 25 M6 14 50 6.317 27.8 57.2
GR2FFT6G02PA000 GRS6 32 42 143.5 70.9 100 73 14 162 145 300 163 F05 M12 32 M6 17 50 12.228 31.8 66.7
GR2FFT7G02PA000 GRS6 40 42 160 78 110 80 14 178.5 165 300 180 F05 M16 38 M6 17 50 16.867 36.5 79.4
GR2FFT8G02PA000 GRS6 50 42 192 93 116 90 14 205.5 196 300 205 F07 M20 48 M8 17 70 25.606 44.5 96.8
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FFT3G044A000 GRS6 13 42 67 28 75 58 11 78.3 78 110 121 F03 M8 13 M5 9 36 2.405 18.24 40.49
GR2FFT4G044A000 GRS6 20 42 85.5 36.5 80 60 14 100 103 180 132 F05 M10 20 M6 14 50 3.902 23.8 50.8
GR2FFT5G044A000 GRS6 25 42 98.5 39.5 88 69 14 113 118 180 142 F05 M12 25 M6 14 50 6.317 27.8 57.2
GR2FFT6G04NA000 GRS6 32 42 143.5 70.9 100 73 14 162 145 300 163 F05 M12 32 M6 17 50 12.228 31.8 66.7
GR2FFT7G04NA000 GRS6 40 42 160 78 110 80 14 178.5 165 300 180 F05 M16 38 M6 17 50 16.867 36.5 79.4
GR2FFT8G04NA000 GRS6 50 42 192 93 116 90 14 205.5 196 300 205 F07 M20 48 M8 17 70 25.606 44.5 96.8
SAE J518 S6000 UNC
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FUT3G022A000 GRS6 13 42 67 28 75 58 11 78.3 78 110 121 F03 5/16 UNC 13 M5 9 36 2.405 18.24 40.49
GR2FUT4G022A000 GRS6 20 42 85.5 36.5 80 60 14 100 103 180 132 F05 3/8 UNC 20 M6 14 50 3.902 23.8 50.8
GR2FUT5G022A000 GRS6 25 42 98.5 39.5 88 69 14 113 118 180 152 F05 7/16 UNC 25 M6 14 50 6.317 27.8 57.2
GR2FUT6G02PA000 GRS6 32 42 143.5 70.9 100 73 14 162 145 300 163 F05 1/2 UNC 32 M6 17 50 12.228 31.8 66.7
GR2FUT7G02PA000 GRS6 40 42 160 78 110 80 14 178.5 165 300 180 F05 5/8 UNC 38 M6 17 50 16.867 36.5 79.4
GR2FUT8G02PA000 GRS6 50 42 192 93 116 90 14 205.5 196 300 205 F07 3/4 UNC 48 M8 17 70 25.606 44.5 96.8
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GR2FUT3G044A000 GRS6 13 42 67 28 75 58 11 78.3 78 110 121 F03 5/16 UNC 13 M5 9 36 2.405 18.24 40.49
GR2FUT4G044A000 GRS6 20 42 85.5 36.5 80 60 14 100 103 180 132 F05 3/8 UNC 20 M6 14 50 3.902 23.8 50.8
GR2FUT5G044A000 GRS6 25 42 98.5 39.5 88 69 14 113 118 180 152 F05 7/16 UNC 25 M6 14 50 6.317 27.8 57.2
GR2FUT6G04NA000 GRS6 32 42 143.5 70.9 100 73 14 162 145 300 163 F05 1/2 UNC 32 M6 17 50 12.228 31.8 66.7
GR2FUT7G04NA000 GRS6 40 42 160 78 110 80 14 178.5 165 300 180 F05 5/8 UNC 38 M6 17 50 16.867 36.5 79.4
GR2FUT8G04NA000 GRS6 50 42 192 93 116 90 14 205.5 196 300 205 F07 3/4 UNC 48 M8 17 70 25.606 44.5 96.8
Certificazioni
valvole certificate ATEX ATmosphere EXplosive
CE ATEX

La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.

valvole certificate CE
CE PED

La certificazione CE PED (Pressure Equipment Directive) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato della Comunità Europea.

valvole certificate EAC EurAsian Conformity
EAC

I certificati e le dichiarazioni EAC (EurAsian Conformity) attesta la conformità dei prodotti che siano stati considerati e valutati conformi ai regolamenti tecnici dell’unione Doganale euroasiatica, con particolare riferimento alle attrezzature in pressione, a quelle destinate ad atmosfere esplosive e alle macchine.

Download: Cataloghi e Disegni

GRS

DATASHEET
pdf ( 1.21 MB )

GRS

DRAWING
Il download di alcuni file è riservato alle persone registrate. Se non sei registrato, procedi subito. Clicca qui per registrarti
zip ( 1.37 MB )
GRS3 DN13 stp ( 2.54 MB )
GRS3 DN32 stp ( 733.11 KB )
GRS3 DN40 stp ( 848.93 KB )
GRS3 DN50 stp ( 692.01 KB )
GRS3 DN65 stp ( 622.65 KB )
GRS3 DN80 stp ( 566.99 KB )
GRS6 DN25 stp ( 721.65 KB )
