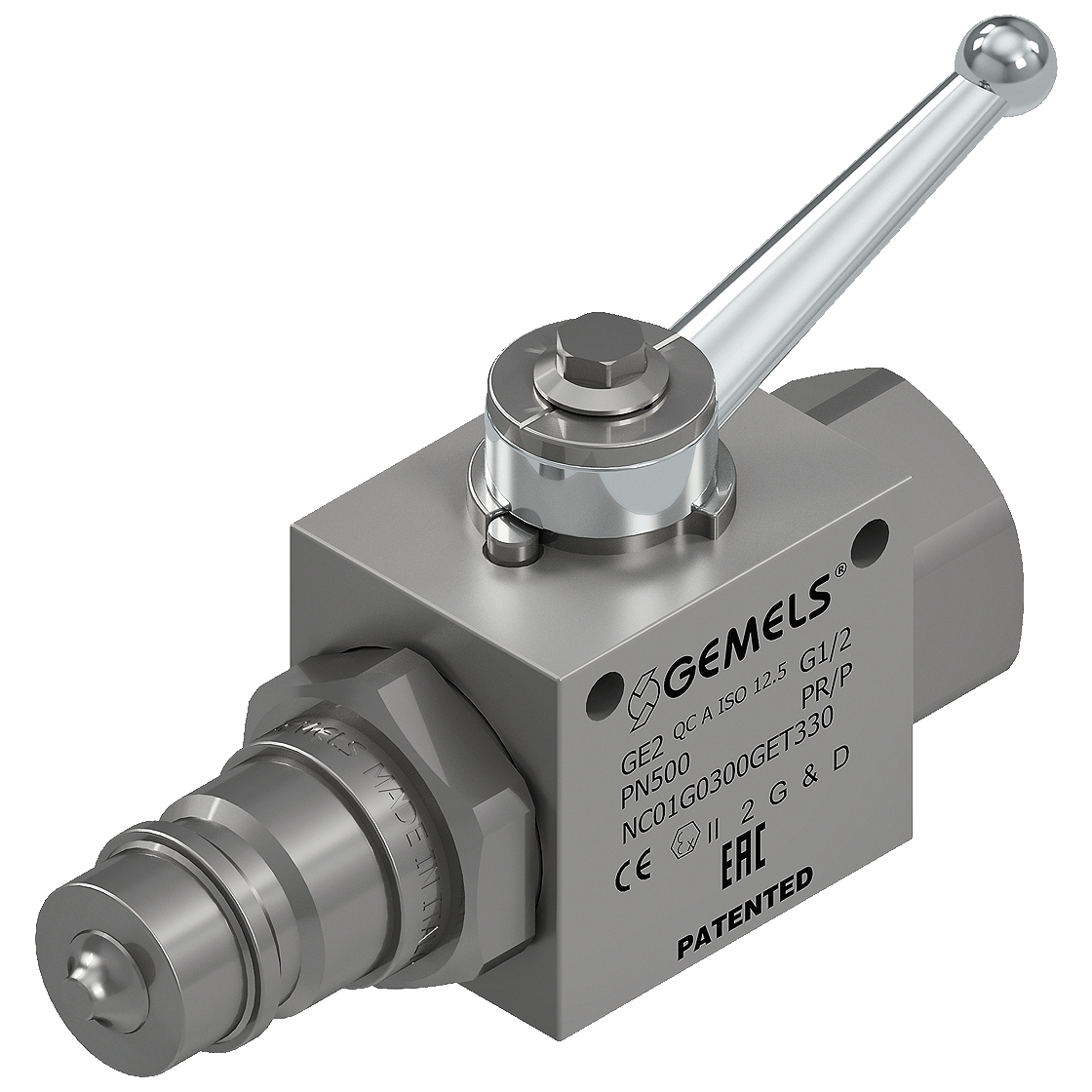

Valvola a sfera con innesto rapido integrato per il settore agricolo

GE2 + ISO A

valvola a sfera con innesto rapido integrato per agricoltura

Soluzione brevettata

Scheda Tecnica

Carbon Steel
Tipo GE2 + QC ISO A
Dimensioni dal DN10 al DN25
Pressione fino a PN420
pdf ( 369.23 KB )
Dettagli Tecnici
valvola a sfera con innesto rapido integrato
DIN/ISO 228 BSP + ISO 7241/A
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01G0200GET230 GE2 G3/8 + QC A 10 MALE 10 42 40 17.4 97.5 44.4 17.3 11 54.25 35 110 93 5.25 10 G 3/8 9 4.5 34
NC02G0200GET230 GE2 G3/8 + QC A 10 FEMALE 10 42 40 32 17.4 108.5 44.4 11 54.25 35 110 93 5.25 10 G 3/8 9 4.5 34
NC01G0300GET330 GE2 G1/2 + QC A 12,5 MALE 13 35 43 19.7 114.5 48.4 20.5 11 57 37 110 97 5.25 13 G 1/2 9 5 36
NC02G0300GET330 GE2 G1/2 + QC A 12,5 FEMALE 13 35 43 38.25 19.7 121 48.4 11 57 37 110 97 5.25 13 G 1/2 9 5 36
NC01G0400GET430 GE2 G3/4 + QC A 20 MALE 20 25 57 25.4 131 62.5 29.1 14 75.5 49 180 105 6.25 20 G 3/4 14 6 50
NC02G0400GET430 GE2 G3/4 + QC A 20 FEMALE 20 25 57 48 25.4 146.5 62.5 14 75.5 49 180 105 6.25 20 G 3/4 14 6 50
NC01G0500GET530 GE2 G1 + QC A 25 MALE 25 25 65 29.5 166.5 66.5 34.34 14 83.5 55 180 113 6.25 25 G 1 14 6 50
NC02G0500GET530 GE2 G1 + QC A 25 FEMALE 25 25 65 56 29.5 182 66.5 14 83.5 55 180 113 6.25 25 G 1 14 6 50
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT + ISO 7241/A
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01N0200GET230 GE2 N3/8 + QC A 10 MALE 10 42 40 17.4 97.5 44.4 17.3 11 54.25 35 110 93 5.25 10 N 3/8 9 4.5 34
NC02N0200GET230 GE2 N3/8 + QC A 10 FEMALE 10 42 40 32 17.4 108.5 44.4 11 54.25 35 110 93 5.25 10 N 3/8 9 4.5 34
NC01N0300GET330 GE2 N1/2 + QC A 12,5 MALE 13 35 43 19.7 114.5 48.4 20.5 11 57 37 110 97 5.25 13 N 1/2 9 5 36
NC02N0300GET330 GE2 N1/2 + QC A 12,5 FEMALE 13 35 43 38.25 19.7 121 48.4 11 57 37 110 97 5.25 13 N 1/2 9 5 36
NC01N0400GET430 GE2 N3/4 + QC A 20 MALE 20 25 57 25.4 131 62.5 29.1 14 75.5 49 180 105 6.25 20 N 3/4 14 6 50
NC02N0400GET430 GE2 N3/4 + QC A 20 FEMALE 20 25 57 48 25.4 146.5 62.5 14 75.5 49 180 105 6.25 20 N 3/4 14 6 50
NC01N0500GET530 GE2 N1 + QC A 25 MALE 25 25 65 29.5 166.5 66.5 34.34 14 83.5 55 180 113 6.25 25 N 1 14 6 50
NC02N0500GET530 GE2 N1 + QC A 25 FEMALE 25 25 65 56 29.5 182 66.5 14 83.5 55 180 113 6.25 25 N 1 14 6 50
disegno tecnico Gemels
SAE J1926-1 + ISO 7241/A
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC01S0200GET230 GE2 SAE6 + QC A 10 MALE 10 42 40 17.5 97.5 44.4 17.3 11.1 54.25 35 110 93 5.25 10 9/16 UNF 9 4.5 34
NC02S0200GET230 GE2 SAE6 + QC A 10 FEMALE 10 42 40 32 17.5 108.5 44.4 11.1 54.25 35 110 93 5.25 10 9/16 UNF 9 4.5 34
NC01S0300GET330 GE2 SAE8 + QC A 12,5 MALE 13 35 43 19.7 114.5 48.4 20.5 11.1 57.25 37 110 97 5.25 13 3/4 UNF 9 5 36
NC02S0300GET330 GE2 SAE8 + QC A 12,5 FEMALE 13 35 43 38.25 19.7 121 48.4 11.1 57.25 37 110 97 5.25 13 3/4 UNF 9 5 36
NC01S0400GET430 GE2 SAE12 + QC A 20 MALE 20 25 57 25.4 131 62.5 29.1 14.35 75.5 49 180 105 6.25 20 1 1/16 UNF 14 6 50
NC02S0400GET430 GE2 SAE12 + QC A 20 FEMALE 20 25 57 48 25.4 146.5 62.5 14.35 75.5 49 180 105 6.25 20 1 1/16 UNF 14 6 50
NC01S0500GET530 GE2 SAE16 + QC A 25 MALE 25 25 65 29.5 166.5 66.5 34.34 14.35 83.5 55 180 113 6.25 25 1 5/16 UNF 14 6 50
NC02S0500GET530 GE2 SAE16 + QC A 25 FEMALE 25 25 65 56 29.5 182 66.5 14.35 83.5 55 180 113 6.25 25 1 5/16 UNF 14 6 50
disegno tecnico Gemels
Download: Cataloghi e Disegni

GES + ISO A

DATASHEET
pdf ( 369.23 KB )
