Valvole GE2HC

GE2HC

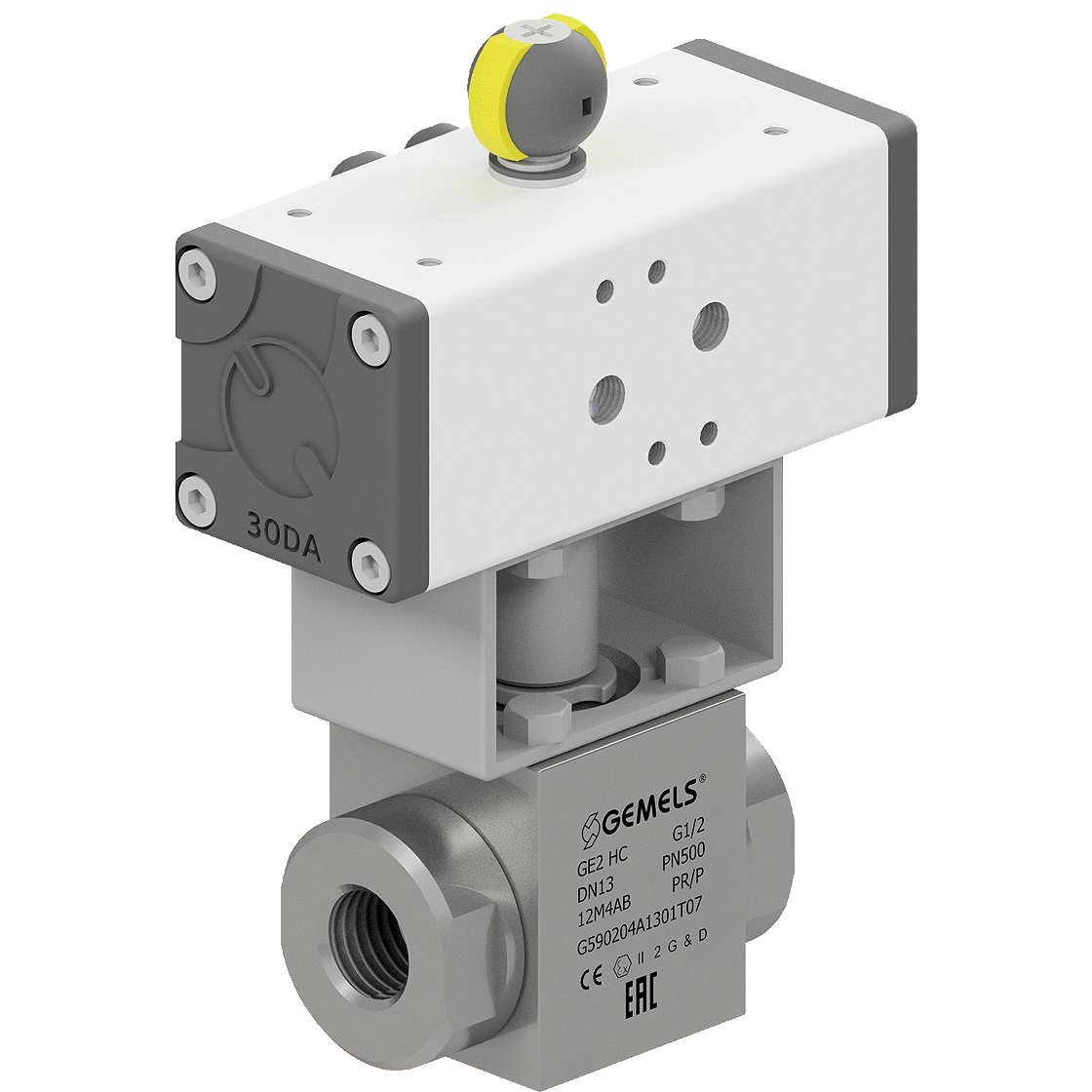

valvola a sfera per CNG

High Cyclicity (1.000.000 cycles)

Scheda Tecnica

Carbon Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN6 al DN32
Filettature BSP-NPT-SAE
Pressione fino a PN500
Temperatura range da -20°C fino a +100°C
Stainless Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN6 al DN32
Filettature BSP-NPT-SAE
Pressione fino a PN500
Temperatura range da -30°C fino a +100°C
Visualizza Accessori
pdf ( 1.54 MB )
Composizione Materiali
valvola a sfera 2vie
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0737 1,4404
2 Adapter 2 1,0460 1,4404
3 Ball 1 1,4404 1,4404
4 Stem 1 1,4542 1,4542
5 Ball seat 2 POM POM
6 Washer 1 1,0116 1,0116
7 Upper Bushing 1 POM - A1000 POM -A1000
8 Lower Bushing 1 POM - A1000 POM -A1000
9 Seeger 1 1,4301 1,4404
10 Adapter o-ring 2 NBR NBR
11 Stem o-ring 1 NBR NBR
12 Stem o-ring 1 (DN10-23) / - (DN20-25-32) NBR NBR
13 Stem Back-up 1 PTFE PTFE
14 Stem Back-up 1 (DN10-23) / - (DN20-25-32) PTFE PTFE
15 Stem quad-ring 1 NBR NBR
16 Closure gasket 2 GRAPHITE GRAPHITE
17 Screws 8 ISO 4017 8.8 ISO 4017 8.8
18 Caps 2 PVC PVC
19 Actuator 1 N/A N/A
20 Connector 1 1,0737 1,0737
21 Joint 1 1,0737 1,0737
22 Pin 1 1,0737 1,4404
Dettagli Tecnici
per CNG, macchine pulizia stradale, autolavaggi e idrogeno
valvola a sfera
High Cyclicity (1.000.000 cycles)
DIN/ISO 228 BSP - BARE STEM
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590202A1301TAA GE2 G 1/4 6 50 57 24.5 73 44 11 71.3 49 F05 10 G 1/4 M6 9 50 0,505
G590203A1301TAA GE2 G 3/8 10 50 57 24.5 73 44 11 71.3 49 F05 10 G 3/8 M6 9 50 0,744
G590204A1301TAA GE2 G 1/2 13 50 57 23.5 81 48 11 71.3 49 F05 13 G 1/2 M6 9 50 1,238
G590205A1301RAA GE2 G 3/4 20 40 65 27 98 62 14 83.7 55 F05 20 G 3/4 M6 14 50 1,818
G590206A1301PAA GE2 G 1 25 35 75 33.5 106 66 14 93.6 65 F05 25 G 1 M6 14 50 2,323
G590207R1301PAA GE2 G 1 1/4 R 25 35 75 33.5 127 66 14 93.6 65 F05 25 G 1/4 M6 14 50 2,573
G590207A1301PAA GE2 G 1 1/4 32 35 87 40.75 127 83 14 93.6 80 F07 32 G 1/4 M8 14 70 2,890
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590202A2P01TAA GE2 G 1/4 6 50 57 24.5 73 44 11 71.3 49 F05 10 G 1/4 M6 9 50 0,505
G590205A2P01RAA GE2 G 3/4 20 40 65 27 98 62 14 83.7 55 F05 20 G 3/4 M6 14 50 1,818
G590206A2P01PAA GE2 G 1 25 35 75 33.5 106 66 14 93.6 65 F05 25 G 1 M6 14 50 2,323
G590207R2P01PAA GE2 G 1 1/4 R 25 35 75 33.5 127 66 14 93.6 65 F05 25 G 1/4 M6 14 50 2,573
G590207A2P01PAA GE2 G 1 1/4 32 35 87 40.75 127 83 14 93.6 80 F07 32 G 1/4 M8 14 70 2,890
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT - BARE STEM
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590902A1301TAA GE2 N 1/4 6 50 57 24.5 73 44 11 71.3 49 F05 10 N 1/4 M6 9 50 0,505
G590903A1301TAA GE2 N 3/8 10 50 57 24.5 73 44 11 71.3 49 F05 10 N 3/8 M6 9 50 0,744
G590904A1301TAA GE2 N 1/2 13 50 57 23.5 81 48 11 71.3 49 F05 13 N 1/2 M6 9 50 1,238
G590905A1301RAA GE2 N 3/4 20 40 65 27 98 62 14 83.7 55 F05 20 N 3/4 M6 14 50 1,818
G590906A1301PAA GE2 N 1 25 35 75 33.5 106 66 14 93.6 65 F05 25 N 1 M6 14 50 2,323
G590907R1301PAA GE2 N 1 1/4 R 25 35 75 33.5 127 66 14 93.6 65 F05 25 N 1/4 M6 14 50 2,573
G590907A1301PAA GE2 N 1 1/4 32 35 87 40.75 127 83 14 93.6 80 F07 32 N 1/4 M8 14 70 2,890
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590902A2P01TAA GE2 N 1/4 6 50 57 24.5 73 44 11 71.3 49 F05 10 N 1/4 M6 9 50 0,505
G590903A2P01TAA GE2 N 3/8 10 50 57 24.5 73 44 11 71.3 49 F05 10 N 3/8 M6 9 50 0,744
G590904A2P01TAA GE2 N 1/2 13 50 57 23.5 81 48 11 71.3 49 F05 13 N 1/2 M6 9 50 1,238
G590905A2P01RAA GE2 N 3/4 20 40 65 27 98 62 14 83.7 55 F05 20 N 3/4 M6 14 50 1,818
G590906A2P01PAA GE2 N 1 25 35 75 33.5 106 66 14 93.6 65 F05 25 N 1 M6 14 50 2,323
G590907R2P01PAA GE2 N 1 1/4 R 25 35 75 33.5 127 66 14 93.6 65 F05 25 N 1/4 M6 14 50 2,573
G590907A2P01PAA GE2 N 1 1/4 32 35 87 40.75 127 83 14 93.6 80 F07 32 N 1/4 M8 14 70 2,890
disegno tecnico Gemels
SAE J1926-1 - BARE STEM
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590B02A1301TAA GE2 SAE4 6 50 57 24.5 73 44 11 71.3 49 F05 10 7/16 UNF M6 9 50 0,505
G590B03A1301TAA GE2 SAE6 10 50 57 24.5 73 44 11 71.3 49 F05 10 9/16 UNF M6 9 50 0,744
G590B04A1301TAA GE2 SAE8 13 50 57 23.5 81 48 11 71.3 49 F05 13 3/4 UNF M6 9 50 1,238
G590B05A1301RAA GE2 SAE12 20 40 65 27 98 62 14 83.7 55 F05 20 1 1/16 UNF M6 14 50 1,818
G590B06A1301PAA GE2 SAE16 25 35 75 33.5 106 66 14 93.6 65 F05 25 1 5/16 UNF M6 14 50 2,323
G590B07R1301PAA GE2 SAE20R 25 35 75 33.5 127 66 14 93.6 65 F05 25 1 5/8 UNF M6 14 50 2,573
G590B07A1301PAA GE2 SAE20 32 35 87 40.75 127 83 14 93.6 80 F07 32 1 5/8 UNF M8 14 70 2,890
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G590B02A2P01TAA GE2 SAE4 6 50 57 24.5 73 44 11 71.3 49 F05 10 7/16 UNF M6 9 50 0,505
G590B03A2P01TAA GE2 SAE6 10 50 57 24.5 73 44 11 71.3 49 F05 10 9/16 UNF M6 9 50 0,744
G590B04A2P01TAA GE2 SAE8 13 50 57 23.5 81 48 11 71.3 49 F05 13 3/4 UNF M6 9 50 1,238
G590B05A2P01RAA GE2 SAE12 20 40 65 27 98 62 14 83.7 55 F05 20 1 1/16 UNF M6 14 50 1,818
G590B06A2P01PAA GE2 SAE16 25 35 75 33.5 106 66 14 93.6 65 F05 25 1 5/16 UNF M6 14 50 2,323
G590B07R2P01PAA GE2 SAE20R 25 35 75 33.5 127 66 14 93.6 65 F05 25 1 5/8 UNF M6 14 50 2,573
G590B07A2P01PAA GE2 SAE20 32 35 87 40.75 127 83 14 93.6 80 F07 32 1 5/8 UNF M8 14 70 2,890
disegno tecnico Gemels
DIN/ISO 228 BSP - WITH ACTUATOR DOUBLE ACTING
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 G 1/4 CS DA_NA GE2 G 1/4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 G 1/4 M6 9 50 1.113
GE2 G 3/8 CS DA_NA GE2 G 3/8 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 G 3/8 M6 9 50 1,0610
GE2 G 1/2 CS DA_NA GE2 G 1/2 13 50 57 23.5 81 48 122 40 49 76,6 209 F05 65,5 13 G 1/2 M6 9 50 1.187
GE2 G 3/4 CS DA_NA GE2 G 3/4 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 G 3/4 M6 14 50 1,9350
GE2 G1 CS DA_NA GE2 G 1 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 G 1 M6 14 50 2.787
GE2 G1 1/4R CS DA_NA GE2 G 1 1/4 R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 G 1/4 M6 14 50 4.768
GE2 G1 1/4 CS DA_NA GE2 G 1 1/4 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 G 1/4 M8 14 70 4.933
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 G 1/4 SS DA_NA GE2 G 1/4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 G 1/4 M6 9 50 1.113
GE2 G 3/8 SS DA_NA GE2 G 3/8 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 G 3/8 M6 9 50 1,0610
GE2 G 1/2 SS DA_NA GE2 G 1/2 13 50 57 23.5 81 48 76,6 40 49 112 209 F05 65,5 13 G 1/2 M6 9 50 1.187
GE2 G 3/4 SS DA_NA GE2 G 3/4 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 G 3/4 M6 14 50 1,9350
GE2 G1 SS DA_NA GE2 G 1 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 G 1 M6 14 50 2.787
GE2 G1 1/4R SS DA_NA GE2 G 1 1/4 R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 G 1/4 M6 14 50 4.768
GE2 G1 1/4 SS DA_NA GE2 G 1 1/4 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 G 1/4 M8 14 70 4.933
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT -WITH ACTUATOR DOUBLE ACTING
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 N 1/4 CS DA_NA GE2 N 1/4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 N 1/4 M6 9 50 1.113
GE2 N 3/8 CS DA_NA GE2 N 3/8 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 N 3/8 M6 9 50 1,2100
GE2 N 1/2 CS DA_NA GE2 N 1/2 13 50 57 23.5 81 48 122 40 49 76,6 209 F05 65,5 13 N 1/2 M6 9 50 1.184
GE2 N 3/4 CS DA_NA GE2 N 3/4 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 N 3/4 M6 14 50 2.04
GE2 N1 CS DA_NA GE2 N 1 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 N 1 M6 14 50 3.08
GE2 N1 1/4R CS DA_NA GE2 N 1 1/4 R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 N 1/4 M6 14 50 3.08
GE2 N1 1/4 CS DA_NA GE2 N 1 1/4 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 N 1/4 M8 14 70 4.933
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 N 1/4 SS DA_NA GE2 N 1/4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 N 1/4 M6 9 50 1.113
GE2 N 3/8 SS DA_NA GE2 N 3/8 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 N 3/8 M6 9 50 1,2100
GE2 N 1/2 SS DA_NA GE2 N 1/2 13 50 57 23.5 81 48 122 40 49 76,6 209 F05 65,5 13 N 1/2 M6 9 50 1.184
GE2 N 3/4 SS DA_NA GE2 N 3/4 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 N 3/4 M6 14 50 2.04
GE2 N1 SS DA_NA GE2 N 1 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 N 1 M6 14 50 3.08
GE2 N1 1/4R SS DA_NA GE2 N 1 1/4 R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 N 1/4 M6 14 50 3.08
GE2 N1 1/4 SS DA_NA GE2 N 1 1/4 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 N 1/4 M8 14 70 4.933
disegno tecnico Gemels
SAE J1926-1 - WITH ACTUATOR DOUBLE ACTING
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 SAE4 CS DA_NA GE2 SAE4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 7/16 UNF M6 9 50 1.113
GE2 SAE6 CS DA_NA GE2 SAE6 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 9/16 UNF M6 9 50 1,2100
GE2 SAE8 CS DA_NA GE2 SAE8 13 50 57 23.5 81 48 122 40 49 76,6 209 F05 65,5 13 3/4 UNF M6 9 50 1.187
GE2 SAE12 CS DA_NA GE2 SAE12 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 1 1/16 UNF M6 14 50 1,9350
GE2 SAE16 CS DA_NA GE2 SAE16 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 1 5/16 UNF M6 14 50 2.787
GE2 SAE20R CS DA_NA GE2 SAE20R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 1 5/8 UNF M6 14 50 4.768
GE2 SAE20 CS DA_NA GE2 SAE20 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 1 5/8 UNF M8 14 70 4.934
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 SAE4 SS DA_NA GE2 SAE4 6 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 7/16 UNF M6 9 50 1.113
GE2 SAE6 SS DA_NA GE2 SAE6 10 50 57 24.5 73 44 122 40 49 76,6 209 F05 65,5 10 9/16 UNF M6 9 50 1,2100
GE2 SAE8 SS DA_NA GE2 SAE8 13 50 57 23.5 81 48 122 40 49 76,5 209 F05 65,5 13 3/4 UNF M6 9 50 1.187
GE2 SAE12 SS DA_NA GE2 SAE12 20 40 65 27 98 62 151 40 55 89,6 248 F05 80,6 20 1 1/16 UNF M6 14 50 1,9350
GE2 SAE16 SS DA_NA GE2 SAE16 25 35 75 33.5 106 66 151 40 65 89,6 258 F05 80,6 25 1 5/16 UNF M6 14 50 2.787
GE2 SAE20R SS DA_NA GE2 SAE20R 25 35 75 33.5 127 66 151 40 65 89,6 258 F05 80,6 25 1 5/8 UNF M6 14 50 4.768
GE2 SAE20 SS DA_NA GE2 SAE20 32 35 87 40.75 127 83 197 40 80 105 292 F07 95,6 32 1 5/8 UNF M8 14 70 4.934
disegno tecnico Gemels
DIN/ISO 228 BSP - WITH ACTUATOR SPRING RETURN
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 G 1/4 CS SR_NC GE2 G 1/4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 G 1/4 M6 9 50 1.113
GE2 G 3/8 CS SR_NC GE2 G 3/8 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 G 3/8 M6 9 50 1,0610
GE2 G 1/2 CS SR_NC GE2 G 1/2 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 G 1/2 M6 9 50 1.187
GE2 G 3/4 CS SR_NC GE2 G 3/4 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 G 3/4 M6 14 50 1,9350
GE2 G1 CS SR_NC GE2 G 1 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 G 1 M6 14 50 2.787
GE2 G 1 1/4 R CS SR_NC GE2 G 1 1/4 R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 G 1/4 M6 14 50 4.768
GE2 G1 1/4 CS SR_NC GE2 G 1 1/4 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 G 1/4 M8 14 70 4.933
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 G 1/4 SS SR_NC GE2 G 1/4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 G 1/4 M6 9 50 1.113
GE2 G 3/8 SS SR_NC GE2 G 3/8 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 G 3/8 M6 9 50 1,0610
GE2 G 1/2SS SR_NC GE2 G 1/2 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 G 1/2 M6 9 50 1.187
GE2 G 3/4 SS SR_NC GE2 G 3/4 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 G 3/4 M6 14 50 1,9350
GE2 G1 SS SR_NC GE2 G 1 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 G 1 M6 14 50 2.787
GE2 G 1 1/4 R SS SR_NC GE2 G 1 1/4 R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 G 1/4 M6 14 50 4.768
GE2 G1 1/4 SS SR_NC GE2 G 1 1/4 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 G 1/4 M8 14 70 4.933
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT - WITH ACTUATOR SPRING RETURN
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 N 1/4 CS SR_NC GE2 N 1/4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 N 1/4 M6 9 50 1.113
GE2 N 3/8 CS SR_NC GE2 N 3/8 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 N 3/8 M6 9 50 1,2100
GE2 N 1/2 CS SR_NC GE2 N 1/2 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 N 1/2 M6 9 50 1.184
GE2 N 3/4 CS SR_NC GE2 N 3/4 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 N 3/4 M6 14 50 2.04
GE2 N1 CS SR_NC GE2 N1 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 N 1 M6 14 50 3.08
GE2 N1 1/4 R CS SR_NC GE2 N1 1/4 R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 N 1/4 M6 14 50 3.08
GE2 N1 1/4 CS SR_NC GE2 N1 1/4 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 N 1/4 M8 14 70 4.933
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 N 1/4 SS SR_NC GE2 N 1/4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 N 1/4 M6 9 50 1.113
GE2 N 3/8 SS SR_NC GE2 N 3/8 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 N 3/8 M6 9 50 1,2100
GE2 N 1/2 SS SR_NC GE2 N 1/2 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 N 1/2 M6 9 50 1.184
GE2 N 3/4 SS SR_NC GE2 N 3/4 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 N 3/4 M6 14 50 2.04
GE2 N1 SS SR_NC GE2 N1 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 N 1 M6 14 50 3.08
GE2 N1 1/4 R SS SR_NC GE2 N1 1/4 R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 N 1/4 M6 14 50 3.08
GE2 N1 1/4 SS SR_NC GE2 N1 1/4 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 N 1/4 M8 14 70 4.933
disegno tecnico Gemels
SAE J1926-1 - WITH ACTUATOR SPRING RETURN
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 SAE4 CS SR_NC GE2 SAE4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 7/16 UNF M6 9 50 1.113
GE2 SAE6 CS SR_NC GE2 SAE6 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 9/16 UNF M6 9 50 1,2100
GE2 SAE8 CS SR_NC GE2 SAE8 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 3/4 UNF M6 9 50 1.187
GE2 SAE12 CS SR_NC GE2 SAE12 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 1 1/16 UNF M6 14 50 1,9350
GE2 SAE16 CS SR_NC GE2 SAE16 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 1 5/16 UNF M6 14 50 2.787
GE2 SAE20R CS SR_NC GE2 SAE20R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 1 5/8 UNF M6 14 50 4.768
GE2 SAE20 CS SR_NC GE2 SAE20 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 1 5/8 UNF M8 14 70 4.934
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GE2 SAE4 SS SR_NC GE2 SAE4 6 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 7/16 UNF M6 9 50 1.113
GE2 SAE6 SS SR_NC GE2 SAE6 10 50 57 24.5 73 44 231 40 49 89.6 209 F05 80.6 10 9/16 UNF M6 9 50 1,2100
GE2 SAE8 SS SR_NC GE2 SAE8 13 50 57 23.5 81 48 231 40 49 89.6 209 F05 80.6 13 3/4 UNF M6 9 50 1.187
GE2 SAE12 SS SR_NC GE2 SAE12 20 40 65 27 98 62 300 40 55 105 248 F05 96 20 1 1/16 UNF M6 14 50 1,9350
GE2 SAE16 SS SR_NC GE2 SAE16 25 35 75 33.5 106 66 300 40 65 105 258 F05 96 25 1 5/16 UNF M6 14 50 2.787
GE2 SAE20R SS SR_NC GE2 SAE20R 25 35 75 33.5 127 66 300 40 65 105 258 F05 96 25 1 5/8 UNF M6 14 50 4.768
GE2 SAE20 SS SR_NC GE2 SAE20 32 35 87 40.75 127 83 410 40 80 135 292 F07 131 32 1 5/8 UNF M8 14 70 4.934
disegno tecnico Gemels
Certificazioni
valvole certificate ATEX ATmosphere EXplosive
CE ATEX

La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.

valvole certificate CE
CE PED

La certificazione CE PED (Pressure Equipment Directive) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato della Comunità Europea.

valvole certificate EAC EurAsian Conformity
EAC

I certificati e le dichiarazioni EAC (EurAsian Conformity) attesta la conformità dei prodotti che siano stati considerati e valutati conformi ai regolamenti tecnici dell’unione Doganale euroasiatica, con particolare riferimento alle attrezzature in pressione, a quelle destinate ad atmosfere esplosive e alle macchine.

certificazione UKCA
UKCA

La certificazione UKCA Ex (UK Conformity Assessed EXplosive atmosphere) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato del Regno Unito.
La certificazione UKCA PER (UK Conformity Assessed Pressure Equipment Regulation) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato del Regno Unito.

Download: Cataloghi e Disegni

GE2HC

DATASHEET
pdf ( 1.54 MB )
Soluzioni
Torna a Valvole
Richiedi Informazioni

Richiesta Informazioni

"*" indica i campi obbligatori

E-mail*
Termini e condizioni*
Informazioni commerciali
Questo sito è protetto da reCAPTCHA e la Privacy Policy e Termini di utilizzo di Google.
Questo campo serve per la convalida e dovrebbe essere lasciato inalterato.
