La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.

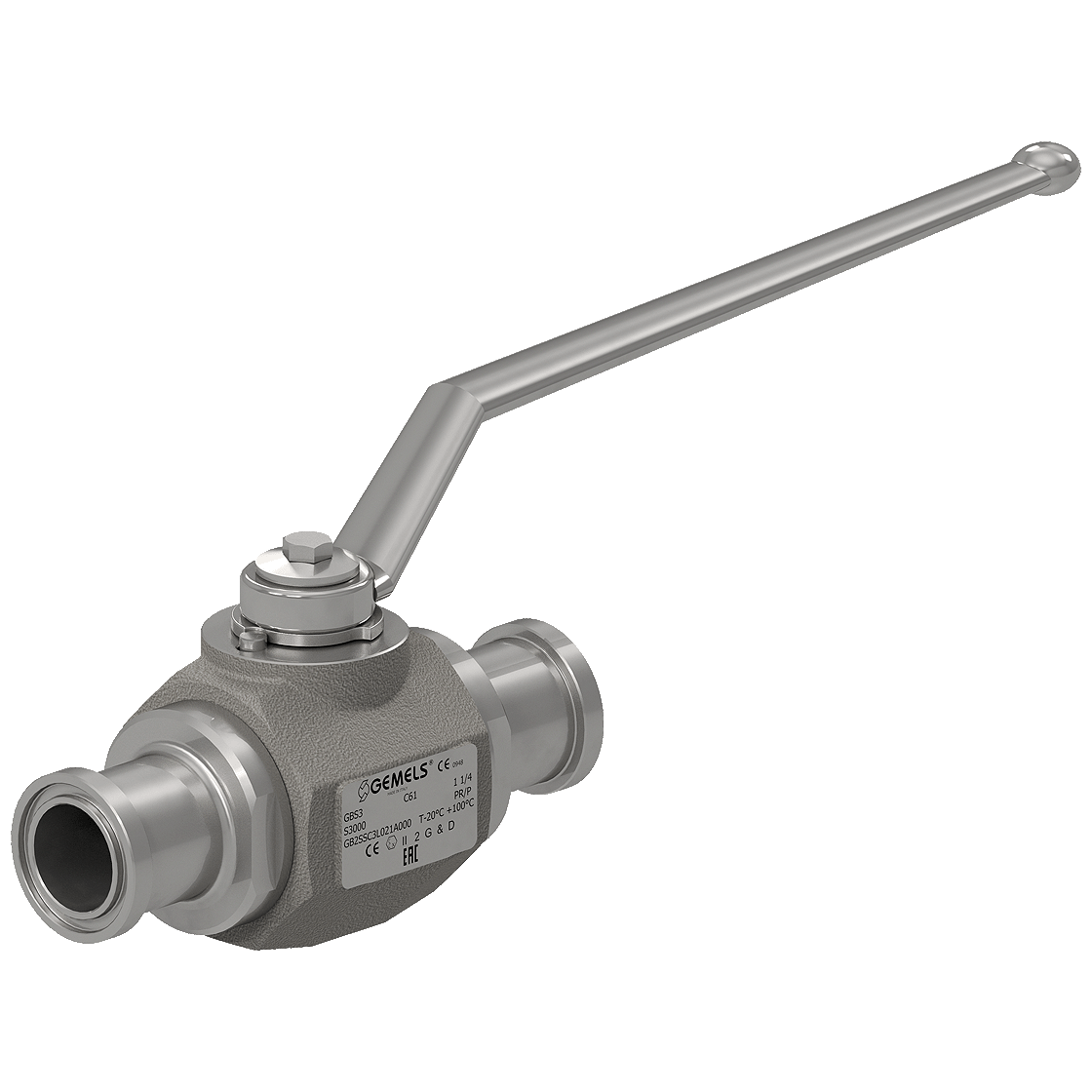

POS | Description | Q.ty | Carbon Steel | Stainless Steel |
---|---|---|---|---|
1 | Body | 1 | 1,0570 | 1,4404 |
2 | Adapter | 2 | 1,0570 | 1,4404 |
3 | Ball | 1 | 1,0737 | 1,4404 |
4 | Stem | 1 | 1,0737 | 1,4404 |
5 | Ball seat | 2 | POM | POM |
6 | Handle | 1 | 1,0116 | 1,0116 |
7 | Washer | 1 | 1,0116 | 1,4404 |
8 | Washer | 1 | 1,0737 | 1,4404 |
9 | Stem ring | 1 | POM | POM |
10 | Pin | 1 | 1,0737 | 1,4404 |
11 | Seeger | 1 | 1,4301 | 1,4404 |
12 | Adapter o-ring | 4 | NBR | NBR |
13 | Stem o-ring | 1 | NBR | NBR |
14 | Screw | 1 | ISO4017 8.8 | ISO4017 A4 |
15 | Caps | 2 | PVC | PVC |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SSC3L021A000 | GBS3 | 32 | 28 | 89 | 42.5 | 190.5 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 32 | 50.8 | 91.5 | 44.45 | 3.94 | 17 | 5.429 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSC4L021A000 | GBS3 | 40 | 21 | 106 | 52.5 | 230.5 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 40 | 60.26 | 112 | 53.72 | 3.94 | 17 | 8.265 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSC5L021A000 | GBS3 | 50 | 21 | 115.5 | 58.5 | 232 | 98 | 14 | 134 | 117 | 310 | 190 | 2.79 | 50 | 71.4 | 126 | 63.25 | 3.94 | 17 | 9.865 |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SSC3L044A000 | GBS3 | 32 | 28 | 89 | 42.5 | 190.5 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 32 | 50.8 | 91.5 | 44.45 | 3.94 | 17 | 5.429 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSC4L044A000 | GBS3 | 40 | 21 | 106 | 52.5 | 230.5 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 40 | 60.26 | 112 | 53.72 | 3.94 | 17 | 8.265 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSC5L044A000 | GBS3 | 50 | 21 | 115.5 | 58.5 | 232 | 98 | 14 | 134 | 117 | 310 | 190 | 2.79 | 50 | 71.4 | 126 | 63.25 | 3.94 | 17 | 9.865 |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SXC3L021A000 | GBS3 | 32 | 28 | 89 | 42.5 | 275 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 30 | 50.8 | 91.5 | 44.45 | 3.94 | 17 | 5.206 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SXC4L021A000 | GBS3 | 40 | 21 | 106 | 52.5 | 321 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 38 | 60.33 | 112 | 53.72 | 3.94 | 17 | 8.323 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SXC5L021A000 | GBS3 | 50 | 21 | 115.5 | 58.5 | 323 | 97.85 | 14 | 134 | 117 | 310 | 190 | 2.79 | 48 | 71.4 | 126 | 63.25 | 3.94 | 17 | 10.097 |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SSC93021A000 | GBS6 | 32 | 42 | 89 | 42.5 | 223 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 32 | 54 | 91.5 | 44.45 | 3.94 | 17 | 5.828 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSCA3021A000 | GBS6 | 40 | 42 | 106 | 52.5 | 281 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 40 | 63.46 | 112 | 53.67 | 3.94 | 17 | 8.251 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSCB3021A000 | GBS6 | 50 | 42 | 115.5 | 58.5 | 316 | 98 | 14 | 134 | 117 | 310 | 190 | 2.79 | 50 | 79.4 | 126 | 63.25 | 3.94 | 17 | 11.774 |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SSC93044A000 | GBS6 | 32 | 42 | 89 | 42.5 | 223 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 32 | 54 | 91.5 | 44.45 | 3.94 | 17 | 5.828 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSCA3044A000 | GBS6 | 40 | 42 | 106 | 52.5 | 281 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 40 | 63.46 | 112 | 53.67 | 3.94 | 17 | 8.251 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SSCB3044A000 | GBS6 | 50 | 42 | 115.5 | 58.5 | 316 | 98 | 14 | 134 | 117 | 310 | 190 | 2.79 | 50 | 79.4 | 126 | 63.25 | 3.94 | 17 | 11.774 |
Item code | Tipo | DN | INCH | PN MPa | A mm | ⌀A mm | ⌀A/QC mm | B mm | ⌀B mm | B1 mm | b mm | C mm | C-BSPP | C RF mm | C RTJ mm | C1 mm | Cavity L mm | Cavity L1 mm | C-D | ch mm | CS | D mm | D1 mm | d mm | ⌀d mm | ⌀d/QC mm | E mm | ⌀E mm | ⌀E linea mm | E1 mm | E2 mm | E3 mm | E4 mm | E5 mm | E6 mm | E7 mm | E8 mm | E9 mm | ES.V mm | F mm | F1 mm | Flow max l/min | Flow min-max l/min | G mm | ⌀G mm | ⌀G* mm | G1 mm | H mm | ⌀H mm | H1 mm | I mm | I1 mm | ISO5211 | J mm | K mm | ⌀K mm | ⌀K* mm | n°⌀K mm | ⌀K1 mm | L mm | L1 mm | L2 mm | L3 mm | L4 mm | LSCH80 mm | ⌀LW mm | ⌀LW1 mm | M mm | ⌀M mm | N mm | ⌀N mm | O-ring | P mm | ⌀P mm | Pilot Ratio | Pressure cracking MPa | Pressure max MPa | Pressure max peak MPa | Pressure max rotating MPa | Pressure max static MPa | Pressure max woking MPa | Q mm | ⌀Q mm | R mm | ⌀R mm | ⌀RA mm | S mm | ⌀S mm | Setting range MPa | Setting standard MPa | SW mm | SW1 mm | T mm | ⌀T mm | U mm | V mm | V1 - V2 C1 - C2GAS - MET | W mm | W* mm | W1 mm | W2 mm | Weight kg | X mm | X* mm | ⌀X mm | X1 mm | X-BSPP | Y mm | ⌀Y mm | Y1 mm | ⌀z mm | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GB2SXC93021A000 | GBS6 | 32 | 42 | 89 | 42.5 | 322 | 75 | 14 | 107.5 | 85 | 310 | 162.5 | 2.79 | 32 | 54 | 91.5 | 44.45 | 3.94 | 17 | 5.828 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SXCA3021A000 | GBS6 | 40 | 42 | 106 | 52.5 | 380 | 85 | 14 | 124.5 | 105 | 310 | 180 | 2.79 | 38 | 63.46 | 112 | 53.72 | 3.94 | 17 | 8.47 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GB2SXCB3021A000 | GBS6 | 50 | 42 | 115.5 | 58.5 | 385 | 97.85 | 14 | 134 | 117 | 310 | 190 | 2.79 | 48 | 79.4 | 126 | 63.25 | 3.94 | 17 | 12.058 |
La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.
La certificazione CE PED (Pressure Equipment Directive) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato della Comunità Europea.
I certificati e le dichiarazioni EAC (EurAsian Conformity) attesta la conformità dei prodotti che siano stati considerati e valutati conformi ai regolamenti tecnici dell’unione Doganale euroasiatica, con particolare riferimento alle attrezzature in pressione, a quelle destinate ad atmosfere esplosive e alle macchine.
La certificazione UKCA Ex (UK Conformity Assessed EXplosive atmosphere) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato del Regno Unito.
La certificazione UKCA PER (UK Conformity Assessed Pressure Equipment Regulation) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato del Regno Unito.
