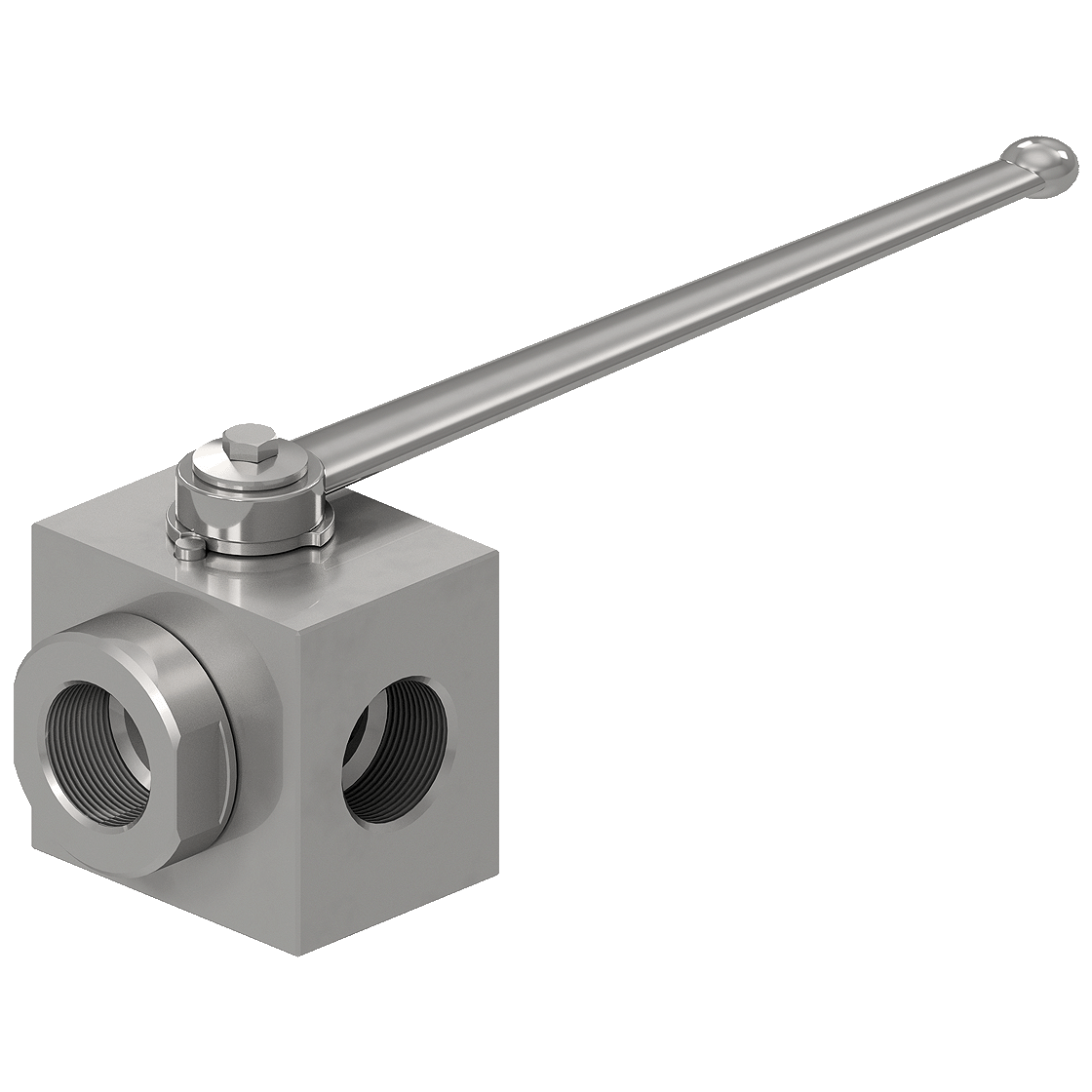

Valvole GB3

GB3

valvole a sfera per movimento terra

3 WAY HIGH PRESSURE

Scheda Tecnica

Carbon Steel
Tipo VALVOLA A SFERA 3 VIE
Dimensioni dal DN32 al DN50
Filettature BSP-NPT
Pressione fino a PN350
Temperatura range da -20°C fino a +100°C
Stainless Steel
Tipo VALVOLA A SFERA 3 VIE
Dimensioni dal DN32 al DN50
Filettature BSP-NPT
Pressione fino a PN350
Temperatura range da -30°C fino a +100°C
Visualizza Accessori
pdf ( 737.42 KB )
Composizione Materiali
valvola GB3 esploso
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0570 1,4404
2 Adapter 2 1,0570 1,4404
3 Ball 1 1,0737 1,4404
4 Stem 1 1,0737 1,4404
5 Ball seat 2 POM POM
6 Handle 1 1,0116 1,0116
7 Washer 1 1,0116 1,4404
8 Washer 1 1,0116 1,4404
9 Stem ring 1 POM POM
10 Pin 1 1,0737 1,4404
11 Seeger 1 1,4301 1,4404
12 Adapter o-ring 4 NBR NBR
13 Stem o-ring 1 NBR NBR
14 Screw 1 IS04017 8.8 IS04017 A4
15 Caps 3 PVC PVC
Dettagli Tecnici
valvola a sfera antincendio e industria pesante
BSP / NPT
valvola a sfera antincendio
BSP / NPT ASSEMBLING THREADS
DIN/ISO 228 BSP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3GGT63021A000 GB3 G1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 32 G 1 1/4 17 5.725
GB3GGT73021A000 GB3 G1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 40 G 1 1/2 17 8.632
GB3GGT83021A000 GB3 G 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 50 G 2 17 10.607
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3GGT63044A000 GB3 G1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 32 G 1 1/4 17 5.725
GB3GGT73044A000 GB3 G1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 40 G 1 1/2 17 8.632
GB3GGT83044A000 GB3 G 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 50 G 2 17 10.607
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3NNT63021A000 GB3 N 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 32 N 1 1/4 17 5.725
GB3NNT73021A000 GB3 N 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 40 N 1 1/2 17 8.632
GB3NNT83021A000 GB3 N 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 50 N 2 17 10.607
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3NNT63044A000 GB3 N 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 32 N 1 1/4 17 5.725
GB3NNT73044A000 GB3 N 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 40 N 1 1/2 17 8.632
GB3NNT83044A000 GB3 N 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 50 N 2 17 10.607
disegno tecnico Gemels
DIN/ISO 228 BSP - ASSEMBLING THREADS AS PER ISO 5211
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3GGT63021AF50 GB3 G 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 F05 32 G 1 1/4 M6 17 50 5.725
GB3GGT73021AF50 GB3 G 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 F05 40 G 1 1/2 M6 17 50 8.632
GB3GGT83021AF50 GB3 G 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 F05 50 G 2 M6 17 50 10.607
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3GGT63044AF50 GB3 G 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 F05 32 G 1 1/4 M6 17 50 5.725
GB3GGT73044AF50 GB3 G 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 F05 40 G 1 1/2 M6 17 50 8.632
GB3GGT83044AF50 GB3 G 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 F05 50 G 2 M6 17 50 10.607
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT - ASSEMBLING THREADS AS PER ISO 5211
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3NNT63021AF50 GB3 N 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 F05 32 N 1 1/4 M6 17 50 5.725
GB3NNT73021AF50 GB3 N 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 F05 40 N 1 1/2 M6 17 50 8.632
GB3NNT83021AF50 GB3 N 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 F05 50 N 2 M6 17 50 10.607
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB3NNT63044AF50 GB3 N 1 1/4 32 35 93 46.5 115 75 13.5 111.5 99 300 120.5 F05 32 N 1 1/4 M6 17 50 5.725
GB3NNT73044AF50 GB3 N 1 1/2 40 35 107 53.5 131 85 13.5 125.5 115 300 134.5 F05 40 N 1 1/2 M6 17 50 8.632
GB3NNT83044AF50 GB3 N 2 50 35 114 57 140 98 13.5 132.5 128 300 141.5 F05 50 N 2 M6 17 50 10.607
disegno tecnico Gemels
Certificazioni
valvole certificate ATEX ATmosphere EXplosive
CE ATEX

La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.

valvole certificate CE
CE PED

La certificazione CE PED (Pressure Equipment Directive) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato della Comunità Europea.

valvole certificate EAC EurAsian Conformity
EAC

I certificati e le dichiarazioni EAC (EurAsian Conformity) attesta la conformità dei prodotti che siano stati considerati e valutati conformi ai regolamenti tecnici dell’unione Doganale euroasiatica, con particolare riferimento alle attrezzature in pressione, a quelle destinate ad atmosfere esplosive e alle macchine.

certificazione UKCA
UKCA

La certificazione UKCA Ex (UK Conformity Assessed EXplosive atmosphere) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato del Regno Unito.
La certificazione UKCA PER (UK Conformity Assessed Pressure Equipment Regulation) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato del Regno Unito.

Download: Cataloghi e Disegni

GB3

DATASHEET
pdf ( 737.42 KB )

GB3

DRAWING
Il download di alcuni file è riservato alle persone registrate. Se non sei registrato, procedi subito. Clicca qui per registrarti
zip ( 198.07 KB )
GB3 1 1/4 stp ( 407.57 KB )
GB3 1 1/2 stp ( 376.79 KB )
GB3 2 stp ( 390.11 KB )
