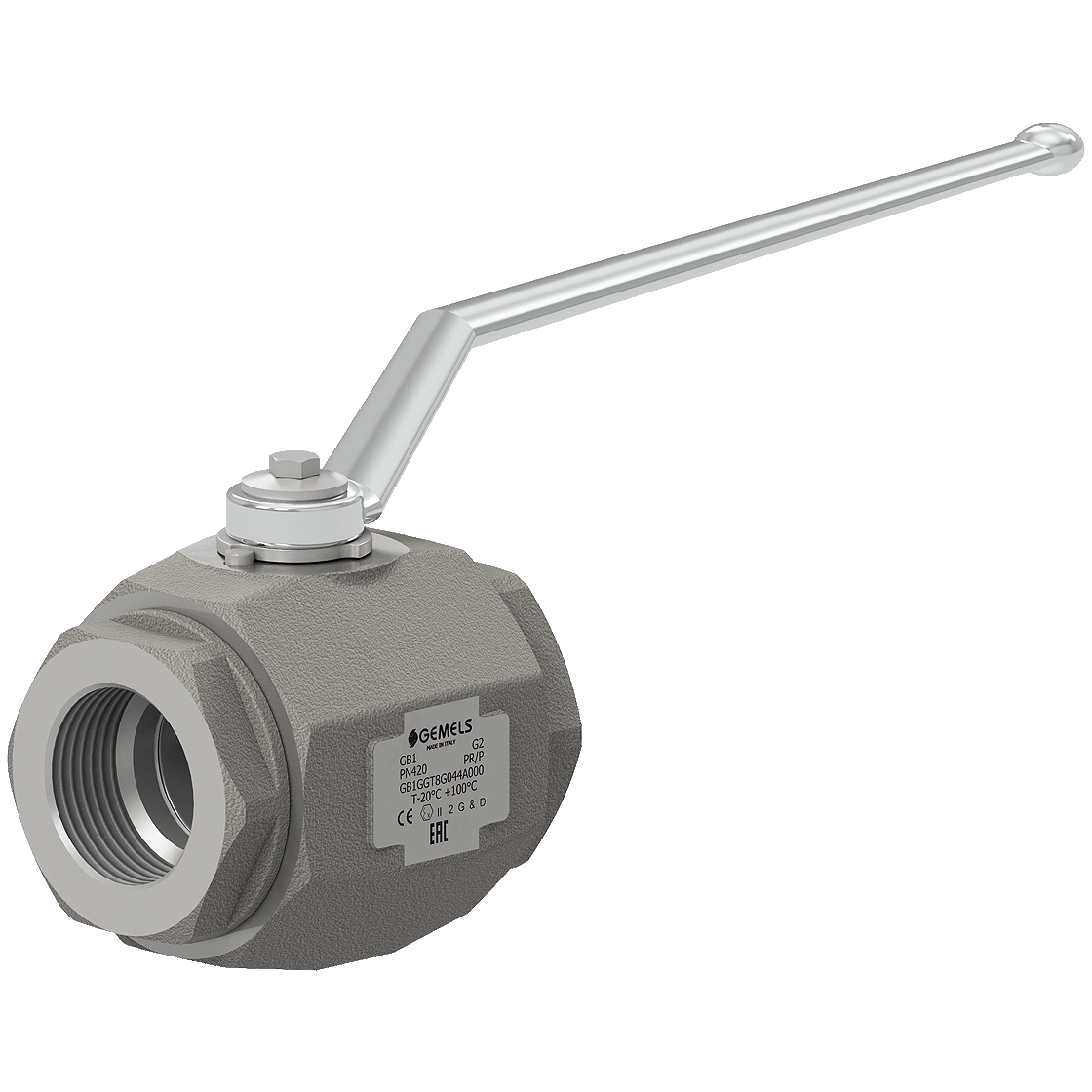

VALVOLA A SFERA

GB1

valvola a sfera per antincendio

2 WAY HIGH PRESSURE

Scheda Tecnica

Carbon Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN32 al DN50
Filettature BSP-NPT-SAE
Pressione fino a PN420
Temperatura range da -30°C fino a +100°C (corpo -46°C)
Stainless Steel
Tipo VALVOLA A SFERA 2 VIE
Dimensioni dal DN32 al DN50
Filettature BSP-NPT-SAE
Pressione fino a PN420
Temperatura range da -30°C fino a +100°C (corpo -46°C)
Visualizza Accessori
pdf ( 2.47 MB )
Composizione Materiali
valvola 2 way high pressure
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0570 1,4404
2 Adapter 2 1,0570 1,4404
3 Ball 1 1,0737 1,4404
4 Stem 1 1,0737 1,4404
5 Ball seat 2 POM POM
6 Handle 1 1,0116 1.0116
7 Washer 1 1,0116 1,4031
8 Washer 1 1,0737 1,4031
9 Back-up 1 PTFE PTFE
10 Stem ring 1 POM POM
11 Pin 1 1,0737 1,4404
12 Seeger 1 1,4301 1,4404
13 Adapter o-ring 4 NBR NBR
14 Stem o-ring 1 NBR NBR
15 Screw 1 ISO4017 8.8 ISO4017 A4
16 Caps 2 PVC PVC
Dettagli Tecnici
DIN/ISO 228 BSP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1GGT6G0L1A000 GB1 G 1 1/4 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 G 1 1/4 92 17 4.489
GB1GGT7G0L1A000 GB1 G 1 1/2 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 G 1 1/2 113 17 6,750
GB1GGT8G0L1A000 GB1 G 2 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 G 2 126 17 8,708
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1GGT6G044A000 GB1 G 1 1/4 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 G 1 1/4 92 17 4.489
GB1GGT7G044A000 GB1 G 1 1/2 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 G 1 1/2 113 17 6,750
GB1GGT8G044A000 GB1 G 2 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 G 2 126 17 8,708
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1NNT6G0L1A000 GB1 N 1 1/4 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 N 1 1/4 92 17 4.489
GB1NNT7G0L1A000 GB1 N 1 1/2 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 N 1 1/2 113 17 6,774
GB1NNT8G0L1A000 GB1 N 2 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 N 2 126 17 8,708
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1NNT6G044A000 GB1 N 1 1/4 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 N 1 1/4 92 17 4.489
GB1NNT7G044A000 GB1 N 1 1/2 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 N 1 1/2 113 17 6,774
GB1NNT8G044A000 GB1 N 2 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 N 2 126 17 8,708
disegno tecnico Gemels
SAE J1926-1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1EEE5G0L1A000 GB1 SAE20 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 1 5/8 UNF 92 17 4.489
GB1EEE6G0L1A000 GB1 SAE24 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 1 7/8 UNF 113 17 6,822
GB1EEE7G0L1A000 GB1 SAE32 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 1 1/2 UNF 126 17 8,708
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB1EEE5G044A000 GB1 SAE20 32 42 89 42.5 115 75 14 107.5 85 310 162.5 32 1 5/8 UNF 92 17 4.489
GB1EEE6G044A000 GB1 SAE24 40 42 106 52.5 131 85 14 124.5 105 310 179.5 40 1 7/8 UNF 113 17 6,822
GB1EEE7G044A000 GB1 SAE32 50 42 115.5 58.5 140 97.85 14 134 117 310 189 50 1 1/2 UNF 126 17 8,708
disegno tecnico Gemels
DIN 2353 LIGHT SERIES
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB2DDLA3021A000 GB1 35L 32 42 93 46,5 135 75,3 14,5 111,5 88 300 111,3 32 M45X2 97 38,3 17 3,400
GB2DDLB3021A000 GB1 42L 40 42 106 52,5 142 85 14 124,5 105 310 179,5 38 M52X2 113 42,3 17 4,854
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB2DDLA3044A000 GB1 35L 32 42 93 46,5 135 75,3 14,5 111,5 88 300 111,3 32 M45X2 97 38,3 17 3,400
GB2DDLB3044A000 GB1 42L 40 42 106 52,5 142 85 14 124,5 105 310 179,5 38 M52X2 113 42,3 17 4,854
disegno tecnico Gemels
DIN 2353 HEAVY SERIES
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB2DDS93021A000 GB1 38S 32 42 89 42,5 145 75 14 107,5 85 310 162 32 M52x2 92 38,3 17 4,400
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GB2DDS93044A000 GB1 38S 32 42 89 42,5 145 75 14 107,5 85 310 162 32 M52x2 92 38,3 17 4,400
disegno tecnico Gemels
Certificazioni
valvole certificate ATEX ATmosphere EXplosive
CE ATEX

La certificazione CE ATEX (ATmosphere EXplosive) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato della Comunità Europea.

valvole certificate CE
CE PED

La certificazione CE PED (Pressure Equipment Directive) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato della Comunità Europea.

certificazione ufficiale DNV per settore marino
DNV

La certificazione DNV (ente Det Norske Veritas) regolamenta prodotti e apparecchiature e la loro conformità alle norme in ambito marittimo.

valvole certificate EAC EurAsian Conformity
EAC

I certificati e le dichiarazioni EAC (EurAsian Conformity) attesta la conformità dei prodotti che siano stati considerati e valutati conformi ai regolamenti tecnici dell’unione Doganale euroasiatica, con particolare riferimento alle attrezzature in pressione, a quelle destinate ad atmosfere esplosive e alle macchine.

certificazione UKCA
UKCA

La certificazione UKCA Ex (UK Conformity Assessed EXplosive atmosphere) regolamenta le apparecchiature destinate all’impiego in zone a rischio di esplosione nel mercato del Regno Unito.
La certificazione UKCA PER (UK Conformity Assessed Pressure Equipment Regulation) regolamenta la progettazione, la costruzione, l’equipaggiamento e l’installazione in sicurezza di attrezzature in pressione nel mercato del Regno Unito.

Download: Cataloghi e Disegni

GB1

DATASHEET
pdf ( 2.47 MB )

GB1

DRAWING
Il download di alcuni file è riservato alle persone registrate. Se non sei registrato, procedi subito. Clicca qui per registrarti
zip ( 797.55 KB )
GB1 1 1/4 step ( 1.09 MB )
GB1 1 1/2 step ( 1.25 MB )
GB1 2 step ( 1.36 MB )
