Innesti rapidi per escavatori

FACCIA PIANA

innesti rapidi faccia piana per movimento terra

ISO 16028

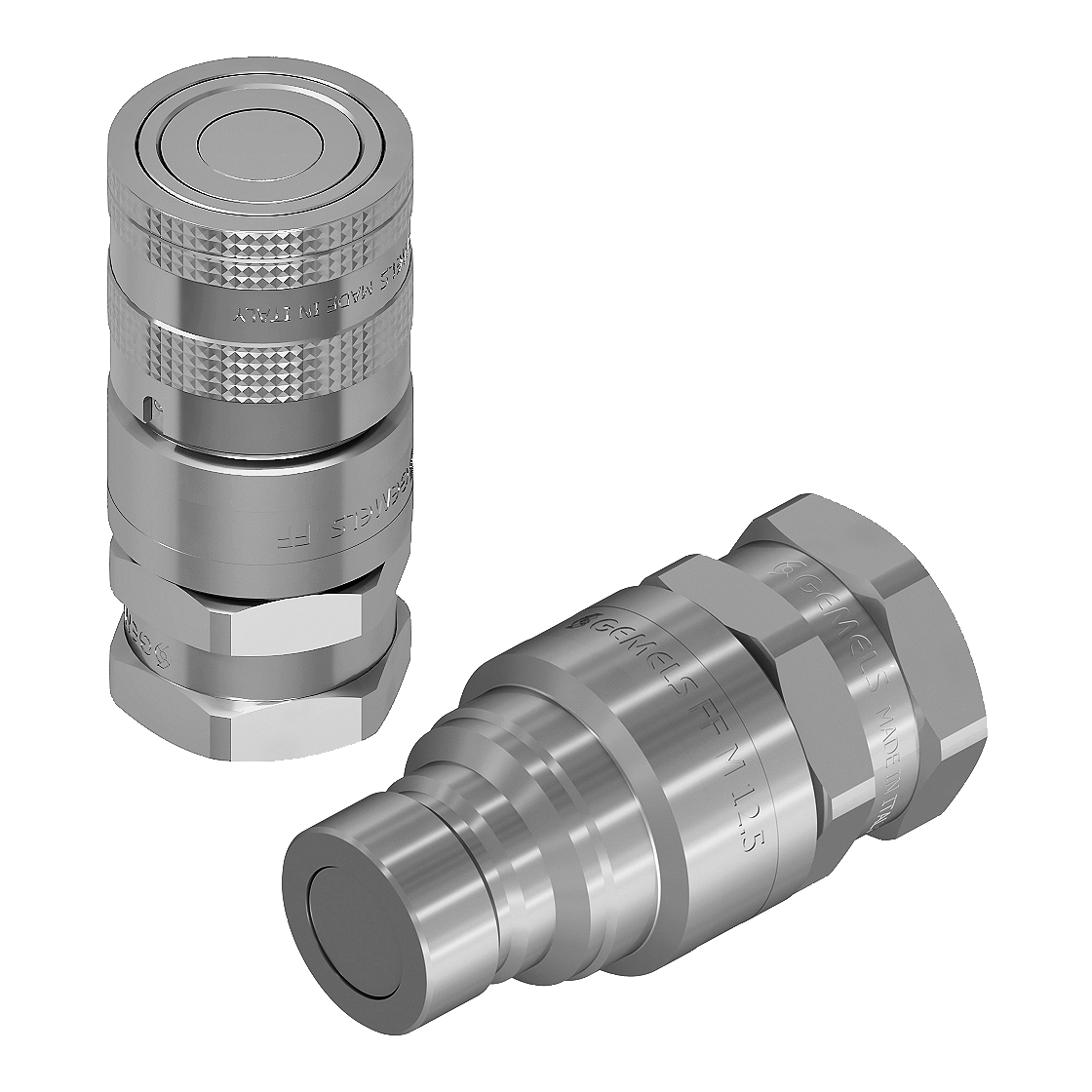

Il prodotto GEMELS Flat Face è un innesto rapido a faccia piana ISO 16028 progettato per connessioni e disconnessioni sicure e rapide in macchine movimento terra ed escavatori. Disponibile in acciaio al carbonio o inox, con dimensioni da DN6 a DN25 e pressione fino a PN420, Flat Face garantisce affidabilità, durata e prestazioni elevate in ambienti di lavoro gravosi. Ideale per applicazioni in impianti idraulici industriali, macchine per movimento terra e attrezzature pesanti, riduce perdite di fluido e semplifica manutenzione e installazione, offrendo una soluzione versatile per il settore edile e industriale.

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN6 al DN25
Pressione fino a PN420
Stainless Steel
Tipo Innesti rapidi
Dimensioni dal DN6 al DN25
Pressione fino a PN420

Caratteristiche Generali

Disponibili nei colori: giallo, rosso, blu, verde

  • CAP per innesti femmina
  • PLUG per innesti maschio
zip ( 46.84 MB )
flat face
FEMALE THREAD ISO 1179-1 BSPP_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06G01S000 QC FF G 1/4 FEMALE 6.3 42 28 61.5 24 G1/4 0.151
NC05G01S000 QC FF G 1/4 MALE 6.3 42 48 24 16.15 G1/4 0.09
NC05G020001 QC FF G 3/8 MALE 10 42 65.5 30 19.75 G3/8 0.11
NC06G020001 QC FF G 3/8 FEMALE 10 42 32 75 30 G3/8 0.29
NC05G02S000 QC FF G 1/2 MALE 10 42 69.5 30 19.75 G1/2 0.13
NC06G02S000 QC FF G 1/2 EMALE 10 42 32 79 30 G1/2 0.25
NC05G030002 QC FF G 1/2 MALE 12.5 42 75 34 24.5 G1/2 0.317
NC06G030002 QC FF G 1/2 FEMALE 12.5 42 38 81 34 G1/2 0.377
NC05G03S000 QC FF G 3/4 MALE 12.5 42 77.5 34 24.5 G3/4 0.291
NC06G03S000 QC FF G 3/4 FEMALE 12.5 42 38 8.5 34 G3/4 0.411
NC05G040002 QC FF G 3/4 MALE 16 35 83.5 41 27 G3/4 0.3
NC06GA3S002 QC FF G 1 FEMALE 16 35 42 95 41 G1 0.6
NC05GA3S002 QC FF G 1 MALE 16 35 87 41 27 G1 0.45
NC06G040002 QC FF G 3/4 FEMALE 16 35 42 91 41 G3/4 0.47
NC06GA3S001 QC FF G 5/8 FEMALE 16 35 42 88 41 G5/8 0.49
NC05GA3S001 QC FF G 5/8 MALE 16 35 81 41 27 G5/8 0.35
NC06GA3S000 QC FF G 1/2 FEMALE 16 35 42 87 41 G1/2 0.52
NC05GA3S000 QC FF G 1/2 MALE 16 35 80 41 27 G1/2 0.4
NC05G04S000 QC FF G 3/4 MALE 19 35 88.5 41 29.95 G3/4 0.48
NC06G04S000 QC FF G 3/4 FEMALE 19 35 48 99 41 G3/4 0.78
NC05G050001 QC FF G 1 MALE 19 35 92 41 29.95 G1 0.436
NC06G050001 QC FF G 1 FEMALE 19 35 48 103 41 G1 0.733
NC05G05S000 QC FF G 1 MALE 25 35 100 50 36 G1 0.58
NC06G05S000 QC FF G 1 FEMALE 25 35 55 100 50 G1 1.25
NC05G060001 QC FF G 1 1/4 MALE 25 35 103 50 36 G1 1/4 0.696
NC06G060001 QC FF G 1 1/4 FEMALE 25 35 55 103 50 G1 1/4 1.323
NC05G05S001 QC FF G 1 1/2 MALE 25 35 103 55 36 G1 1/2 0.75
NC06G05S001 QC FF G 1 1/2 FEMALE 25 35 55 103 55 G1 1/2 1.53
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06G010000 QC FF G 1/4 FEMALE 6.3 42 27 61.5 24 G1/4 0.151
NC05G010000 QC FF G 1/4 MALE 6.3 42 48 24 16.15 G1/4 0.09
NC05G020000 QC FF G 3/8 MALE 10 42 65.5 30 19.75 G3/8 0.11
NC06G020000 QC FF G 3/8 FEMALE 10 42 31 75 30 G3/8 0.29
NC05G030000 QC FF G 1/2 MALE 10 42 69.5 30 19.75 G1/2 0.13
NC06G030000 QC FF G 1/2 FEMALE 10 42 31 79 30 G1/2 0.25
NC05G030003 QC FF G 1/2 MALE 12.5 42 75 34 24.5 G1/2 0.317
NC06G030003 QC FF G 1/2 FEMALE 12.5 42 38 81 34 G1/2 0.377
NC05G040000 QC FF G 3/4 MALE 12.5 42 77.5 34 24.5 G3/4 0.291
NC06G040000 QC FF G 3/4 FEMALE 12.5 42 38 8.5 34 G3/4 0.411
NC05G040004 QC FF G 3/4 MALE 16 35 83.5 41 27 G3/4 0.3
NC06G050003 QC FF G 1 FEMALE 16 35 42 95 41 G1 0.6
NC05G050003 QC FF G 1 MALE 16 35 87 41 27 G1 0.45
NC06G040004 QC FF G 3/4 FEMALE 16 35 42 91 41 G3/4 0.47
NC06GA30000 QC FF G 5/8 FEMALE 16 35 42 88 41 G5/8 0.49
NC05GA30000 QC FF G 5/8 MALE 16 35 81 41 27 G5/8 0.35
NC06G030004 QC FF G 1/2 FEMALE 16 35 42 87 41 G1/2 0.52
NC05G030004 QC FF G 1/2 MALE 16 35 80 41 27 G1/2 0.4
NC05G040005 QC FF G 3/4 MALE 19 35 88.5 41 29.95 G3/4 0.48
NC06G040005 QC FF G 3/4 FEMALE 19 35 48 99 41 G3/4 0.78
NC05G050000 QC FF G 1 MALE 19 35 92 41 29.95 G1 0.436
NC06G050000 QC FF G 1 FEMALE 19 35 48 103 41 G1 0.733
NC05G050002 QC FF G 1 MALE 25 35 100 50 36 G1 0.58
NC06G050002 QC FF G 1 FEMALE 25 35 55 100 50 G1 1.25
NC05G060000 QC FF G 1 1/4 MALE 25 35 103 50 36 G1 1/4 0.696
NC06G060000 QC FF G 1 1/4 FEMALE 25 35 55 103 50 G1 1/4 1.323
NC05G070000 QC FF G 1 1/2 MALE 25 35 103 55 36 G1 1/2 0.75
NC06G070000 QC FF G 1 1/2 FEMALE 25 35 55 103 55 G1 1/2 1.53
disegno tecnico Gemels
ISO 16028 FLAT FACE (male / female) MALE THREAD ISO 8434-6 BSPP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06E01S000 QC FF G 1/4M FEMALE 6.3 42 27 67 24 4.7 G1/4 0.351
NC05E01S000 QC FF G 1/4M MALE 6.3 42 53.5 24 16.15 4.7 G1/4 0.29
NC05E020001 QC FF G 3/8M MALE 10 42 72 30 19.75 7.9 G3/8 0.31
NC06E02S001 QC FF G 3/8M FEMALE 10 42 31 81.7 30 7.9 G3/8 0.49
NC05E02S001 QC FF G 3/8M MALE 10 42 72 30 19.75 7.9 G3/8 0.31
NC06E02S001 QC FF G 3/8M FEMALE 10 42 32 81.7 30 7.9 G3/8 0.49
NC05E03S000 QC FF G 1/2M MALE 12.5 42 77 34 24.5 11.1 G1/2 0.517
NC06E03S000 QC FF G 1/2M FEMALE 12.5 42 38 83 34 11.1 G1/2 0.577
NC05E03S001 QC FF G 1/2M MALE 12.5 42 77 34 24.5 11.1 G1/2 0.517
NC06E03S001 QC FF G 1/2M FEMALE 12.5 42 38 83 34 11.1 G1/2 0.577
NC05E04S001 QC FF G 3/4M MALE 16 35 86 41 27 16.7 G3/4 0.5
NC06E04S001 QC FF G 3/4M FEMALE 16 35 42 94 41 16.7 G3/4 0.67
NC06EA3S000 QC FF G 5/8M FEMALE 16 35 42 94 41 14.3 G5/8 0.69
NC05EA3S000 QC FF G 5/8M MALE 16 35 86 41 27 14.3 G5/8 0.55
NC05E04S000 QC FF G 3/4M MALE 19 35 91 41 29.95 16.7 G3/4 0.68
NC06E04S000 QC FF G 3/4M FEMALE 19 35 48 102 41 16.7 G3/4 0.98
NC05E05S001 QC FF G 1M MALE 19 35 94 41 29.95 22.2 G1 0.636
NC06E05S001 QC FF G 1M FEMALE 19 35 44 105 41 22.2 G1 0.933
NC05E05S002 QC FF G 1M MALE 19 35 94 41 29.95 22.2 G1 0.636
NC06E05S002 QC FF G 1M FEMALE 19 35 48 105 41 22.2 G1 0.933
NC05E05S000 QC FF G 1M MALE 25 35 106 50 36 22.2 G1 0.78
NC06E05S000 QC FF G 1M FEMALE 25 35 55 106 50 22.2 G1 1.45
NC05E06S000 QC FF G 1 1/4M MALE 25 35 107 50 36 28.6 G1 1/4 0.896
NC06E06S000 QC FF G 1 1/4M FEMALE 25 35 54.5 107 50 28.6 G1 1/4 1.523
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06E010000 QC FF G 1/4M FEMALE 6.3 42 28 67 24 4.7 G1/4 0.351
NC05E010000 QC FF G 1/4M MALE 6.3 42 53.5 24 16.15 4.7 G1/4 0.29
NC05E020000 QC FF G 3/8M MALE 10 42 72 30 19.75 7.9 G3/8 0.31
NC06E020000 QC FF G 3/8M FEMALE 10 42 32 81.7 30 7.9 G3/8 0.49
NC05E030000 QC FF G 1/2M MALE 10 42 74 30 19.75 11.1 G1/2 0.33
NC06E030000 QC FF G 1/2M FEMALE 10 42 32 83.7 30 11.1 G1/2 0.45
NC05E030003 QC FF G 1/2M MALE 12.5 42 77 34 24.5 11.1 G1/2 0.517
NC06E030003 QC FF G 1/2M FEMALE 12.5 42 38 83 34 11.1 G1/2 0.577
NC05E040000 QC FF G 3/4M MALE 12.5 42 79 34 24.5 16.7 G3/4 0.491
NC06E040000 QC FF G 3/4M FEMALE 12.5 42 38 85 34 16.7 G3/4 0.611
NC05E040004 QC FF G 3/4M MALE 16 35 86 41 27 16.7 G3/4 0.5
NC06E040004 QC FF G 3/4M FEMALE 16 35 42 94 41 16.7 G3/4 0.67
NC06EA30000 QC FF G 5/8M FEMALE 16 35 42 94 41 14.3 G5/8 0.69
NC05EA30000 QC FF G 5/8M MALE 16 35 86 41 27 14.3 G5/8 0.55
NC05E040005 QC FF G 3/4M MALE 19 35 91 41 29.95 16.7 G3/4 0.68
NC06E040005 QC FF G 3/4M FEMALE 19 35 48 102 41 16.7 G3/4 0.98
NC05E050000 QC FF G 1M MALE 19 35 94 41 29.95 22.2 G1 0.636
NC06E050000 QC FF G 1M FEMALE 19 35 48 105 41 22.2 G1 0.933
NC05E050002 QC FF G 1M MALE 25 35 106 50 36 22.2 G1 0.78
NC06E050002 QC FF G 1M FEMALE 25 35 55 106 50 22.2 G1 1.45
NC05E060000 QC FF G 1 1/4M MALE 25 35 107 50 36 28.6 G1 1/4 0.896
NC06E060000 QC FF G 1 1/4M FEMALE 25 35 55 107 50 28.6 G1 1/4 1.523
NC05E070000 QC FF G 1 1/2M MALE 25 35 109 55 36 33.3 G1 1/2 0.95
NC06E070000 QC FF G 1 1/2M FEMALE 25 35 55 109 55 33.3 G1 1/2 1.73
disegno tecnico Gemels
QUICK COUPLINGS ISO 16028 FLAT FACE (male / female) FEMALE THREAD ISO 7-1 BSPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06P01S000 QC FF G 1/4 FEMALE 6.3 42 28 61.5 24 Rc 1/4 0.357
NC05P01S000 QC FF G 1/4 MALE 6.3 42 48 24 16.15 Rc 1/4 0.107
NC05P020001 QC FF G 3/8 MALE 10 42 65.5 30 19.75 Rc 3/8 0.216
NC06P020001 QC FF G 3/8 FEMALE 10 42 32 75 30 Rc 3/8 0.593
NC05P02S000 QC FF G 1/2 MALE 10 42 69.5 30 19.75 Rc 1/2 0.217
NC06P02S000 QC FF G 1/2 FEMALE 10 42 32 79 30 Rc 1/2 0.595
NC05P030002 QC FF G 1/2 MALE 12.5 42 75 34 24.5 Rc 1/2 0.344
NC06P030002 QC FF G 1/2 FEMALE 12.5 42 38 81 34 Rc 1/2 0.521
NC05P03S000 QC FF G 3/4 MALE 12.5 42 77 34 24.5 Rc 3/4 0.324
NC06P03S000 QC FF G 3/4 FEMALE 12.5 42 38 83 34 Rc 3/4 0.501
NC06P040002 QC FF G 3/4 FEMALE 16 35 42 90 41 Rc 3/4 0.435
NC06PA3S002 QC FF G 1 FEMALE 16 35 42 95 41 Rc 1 0.6
NC05PA3S002 QC FF G 1 MALE 16 35 87 41 27 Rc 1 1/4 0.45
NC05P040002 QC FF G 3/4 MALE 16 35 82.5 41 27 Rc 3/4 0.279
NC06PA3S000 QC FF G 1/2 FEMALE 16 35 42 89 41 Rc 1/2 0.532
NC05PA3S000 QC FF G 1/2 MALE 16 35 82 41 27 Rc 1/2 0.456
NC05P04S000 QC FF G 3/4 MALE 19 35 87.5 41 29.95 Rc 3/4 0.48
NC06P04S000 QC FF G 3/4 FEMALE 19 35 48 98 41 Rc 3/4 0.78
NC05P050001 QC FF G 1 MALE 19 35 92 41 29.95 Rc 1 0.436
NC06P050001 QC FF G 1 FEMALE 19 35 48 103 41 Rc 1 0.733
NC05P05S000 QC FF G 1 MALE 25 35 100 50 36 Rc 1 0.58
NC06P05S000 QC FF G 1 FEMALE 25 35 55 100 50 Rc 1 1.25
NC05P060001 QC FF G 1 1/4 MALE 25 35 102 50 36 Rc 1 1/4 0.696
NC06P060001 QC FF G 1 1/4 FEMALE 25 35 55 102 50 Rc 1 1/4 1.323
NC05P05S001 QC FF G 1 1/2 MALE 25 35 102 55 36 Rc 1 1/2 0.75
NC06P05S001 QC FF G 1 1/2 FEMALE 25 35 55 102 55 Rc 1 1/2 1.53
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06P010000 QC FF G 1/4 FEMALE 6.3 42 28 61.5 24 Rc 1/4 0.357
NC05P010000 QC FF G 1/4 MALE 6.3 42 48 24 16.15 Rc 1/4 0.107
NC05P030003 QC FF G 1/2 MALE 12.5 42 75 34 24.5 Rc 1/2 0.344
NC06P030003 QC FF G 1/2 FEMALE 12.5 42 38 81 34 Rc 1/2 0.521
NC05P040000 QC FF G 3/4 MALE 12.5 42 77 34 24.5 Rc 3/4 0.324
NC06P040000 QC FF G 3/4 FEMALE 12.5 42 38 83 34 Rc 3/4 0.501
NC06P050003 QC FF G 1 FEMALE 16 35 42 95 41 Rc 1 0.6
NC05P050003 QC FF G 1 MALE 16 35 87 41 27 Rc 1 0.45
NC06P040004 QC FF G 3/4 FEMALE 16 35 42 90 41 Rc 3/4 0.435
NC05P040004 QC FF G 3/4 MALE 16 35 82.5 41 27 Rc 3/4 0.279
NC06P030004 QC FF G 1/2 FEMALE 16 35 42 89 41 Rc 1/2 0.532
NC05P030004 QC FF G 1/2 MALE 16 35 82 41 27 Rc 1/2 0.456
NC05P040005 QC FF G 3/4 MALE 19 35 87.5 41 29.95 Rc 3/4 0.48
NC06P040005 QC FF G 3/4 FEMALE 19 35 48 98 41 Rc 3/4 0.78
NC05P050000 QC FF G 1 MALE 19 35 92 41 29.95 Rc 1 0.436
NC06P050000 QC FF G 1 FEMALE 19 35 48 103 41 Rc 1 0.733
NC05P050002 QC FF G 1 MALE 25 35 100 50 36 Rc 1 0.58
NC06P050002 QC FF G 1 FEMALE 25 35 55 100 50 Rc 1 1.25
NC05P060000 QC FF G 1 1/4 MALE 25 35 102 50 36 Rc 1 1/4 0.696
NC06P060000 QC FF G 1 1/4 FEMALE 25 35 55 102 50 Rc 1 1/4 1.323
NC05P070000 QC FF G 1 1/2 MALE 25 35 102 55 36 Rc 1 1/2 0.75
NC06P070000 QC FF G 1 1/2 FEMALE 25 35 55 102 55 Rc 1 1/2 1.53
FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06N01S000 QC FF N 1/4 FEMALE 6.3 42 28 63 24 N1/4 0.151
NC05N01S000 QC FF N 1/4 MALE 6.3 42 49.5 24 16.15 N1/4 0.09
NC05N02S000 QC FF N 3/8 MALE 10 42 67.5 30 19.75 N3/8 0.11
NC06N02S000 QC FF N 3/8 FEMALE 10 42 32 77 30 N3/8 0.29
NC05N02S001 QC FF N 1/2 MALE 10 42 72 30 19.75 N1/2 0.13
NC06N02S001 QC FF N 1/2 FEMALE 10 42 32 82 30 N1/2 0.25
NC05N03S000 QC FF N 1/2 MALE 12.5 42 75 34 24.5 N1/2 0.317
NC06N03S000 QC FF N 1/2 FEMALE 12.5 42 38 81 34 N1/2 0.377
NC05N03S001 QC FF N 3/4 MALE 12.5 42 78 34 24.5 N3/4 0.291
NC06N03S001 QC FF N 3/4 FEMALE 12.5 42 38 84 34 N3/4 0.411
NC06NA3S001 QC FF N 3/4 FEMALE 16 35 42 91 41 N3/4 0.47
NC06NA3S002 QC FF N 1 FEMALE 16 35 42 95 41 N1 0.6
NC05NA3S002 QC FF N 1 MALE 16 35 87 41 27 N1 0.45
NC05NA3S001 QC FF N 3/4 MALE 16 35 83.5 41 27 N3/4 0.3
NC06NA3S000 QC FF N 1/2 FEMALE 16 35 42 87 41 N1/2 0.52
NC05NA3S000 QC FF N 1/2 MALE 16 35 82 41 27 N1/2 0.4
NC05N04S000 QC FF N 3/4 MALE 19 35 88.5 41 29.95 N3/4 0.48
NC06N04S000 QC FF N 3/4 FEMALE 19 35 48 99 41 N3/4 0.78
NC05N04S001 QC FF N 1 MALE 19 35 92 41 29.95 N1 0.436
NC06N04S001 QC FF N 1 FEMALE 19 35 48 99 41 N1 0.733
NC05N05S000 QC FF N 1 MALE 25 35 100 50 36 N 1 0.58
NC06N05S000 QC FF N 1 FEMALE 25 35 55 100 50 N 1 1.25
NC05N05S001 QC FF N 1.1/4 MALE 25 35 103 50 36 N 1 1/4 0.696
NC06N05S001 QC FF N 1.1/4 FEMALE 25 35 55 103 50 N 1 1/4 1.323
NC05N05S002 QC FF N 1.1/2 MALE 25 35 103 55 36 N 1 1/2 0.75
NC06N05S002 QC FF N 1.1/2 FEMALE 25 35 55 103 55 N 1 1/2 1.53
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06N010000 QC FF N 1/4 FEMALE 6.3 42 28 63 24 N1/4 0.151
NC05N010000 QC FF N 1/4 MALE 6.3 42 49.5 24 16.15 N1/4 0.09
NC05N020000 QC FF N 3/8 MALE 10 42 67.5 30 19.75 N3/8 0.11
NC06N020000 QC FF N 3/8 FEMALE 10 42 32 77 30 N3/8 0.29
NC05N030000 QC FF N 1/2 MALE 10 42 72 30 19.75 N1/2 0.13
NC06N030000 QC FF N 1/2 FEMALE 10 42 32 82 30 N1/2 0.25
NC05N030003 QC FF N 1/2 MALE 12.5 42 75 34 24.5 N1/2 0.317
NC06N030003 QC FF N 1/2 FEMALE 12.5 42 38 81 34 N1/2 0.377
NC05N040000 QC FF N 3/4 MALE 12.5 42 78 34 24.5 N3/4 0.291
NC06N040000 QC FF N 3/4 FEMALE 12.5 42 38 84 34 N3/4 0.411
NC06N040004 QC FF N 3/4 FEMALE 16 35 42 91 41 N3/4 0.47
NC06N050003 QC FF N 1 FEMALE 16 35 42 95 41 N1 0.6
NC05N050003 QC FF N 1 MALE 16 35 87 41 27 N1 0.45
NC05N040004 QC FF N 3/4 MALE 16 35 83.5 41 27 N3/4 0.3
NC06N030004 QC FF N 1/2 FEMALE 16 35 42 87 41 N1/2 0.52
NC05N030004 QC FF N 1/2 MALE 16 35 82 41 27 N1/2 0.4
NC05N040005 QC FF N 3/4 MALE 19 35 88.5 41 29.95 N3/4 0.48
NC06N040005 QC FF N 3/4 FEMALE 19 35 48 99 41 N3/4 0.78
NC05N050000 QC FF N 1 MALE 19 35 92 41 29.95 N1 0.436
NC06N050000 QC FF N 1 FEMALE 19 35 48 99 41 N1 0.733
NC05N050002 QC FF N 1 MALE 25 35 100 50 36 N1 0.58
NC06N050002 QC FF N 1 FEMALE 25 35 55 100 50 N1 1.25
NC05N060000 QC FF N 1.1/4 MALE 25 35 103 50 36 N 1 1/4 0.696
NC06N060000 QC FF N 1.1/4 FEMALE 25 35 55 103 50 N 1 1/4 1.323
NC05N070000 QC FF N 1.1/2 MALE 25 35 103 55 36 N 1 1/2 0.75
NC06N070000 QC FF N 1.1/2 FEMALE 25 35 55 103 55 N 1 1/2 1.53
disegno tecnico Gemels
FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06S01S000 QC FF SAE4 FEMALE 6.3 42 28 61.5 24 7/16-20 UNF 0.151
NC05S01S001 QC FF SAE6 MALE 6.3 42 49 24 16.15 9/16-18 UNF 0.22
NC06S01S001 QC FF SAE6 FEMALE 6.3 42 28 62.5 24 9/16-18 UNF 0.35
NC05S01S000 QC FF SAE4 MALE 6.3 42 48 24 16.15 7/16-20 UNF 0.09
NC05S02S000 QC FF SAE6 MALE 10 42 66.5 30 19.75 9/16-18 UNF 0.11
NC06S02S000 QC FF SAE6 FEMALE 10 42 32 76 30 9/16-18 UNF 0.29
NC05S02S001 QC FF SAE8 MALE 10 42 69.5 30 19.75 3/4-16 UNF 0.13
NC06S02S001 QC FF SAE8 FEMALE 10 42 32 79 30 3/4-16 UNF 0.25
NC05S03S000 QC FF SAE8 MALE 12.5 42 75 34 24.5 3/4-16 UNF 0.317
NC06S03S000 QC FF SAE8 FEMALE 12.5 42 38 81 34 3/4-16 UNF 0.377
NC05S03S001 QC FF SAE12 MALE 12.5 42 80.5 34 24.5 1-1/16-12 UN 0.291
NC06S03S001 QC FF SAE12 FEMALE 12.5 42 38 86.5 34 1-1/16-12 UN 0.411
NC05SA3S000 QC FF SAE8 MALE 16 35 80 41 27 3/4-16 UNF 0.4
NC06SA3S001 QC FF SAE12 FEMALE 16 35 42 93 41 1-1/16-12 UN 0.47
NC05SA3S001 QC FF SAE12 MALE 16 35 85 41 27 1-1/16-12 UN 0.3
NC06SA3S000 QC FF SAE8 FEMALE 16 35 42 87 41 3/4-16 UNF 0.52
NC05S04S000 QC FF SAE12 MALE 19 35 92 41 29.95 1-1/16-12 UN 0.48
NC06S04S000 QC FF SAE12 FEMALE 19 35 48 103 41 1-1/16-12 UN 0.78
NC05S05S002 QC FF SAE16 MALE 19 35 92 41 29.95 1 5/16 -12 UN 0.7
NC06S05S002 QC FF SAE16 FEMALE 19 35 48 103 41 1 5/16 -12 UN 0.85
NC05S05S000 QC FF SAE16 MALE 25 35 100 50 36 1-5/16-12 UN 0.58
NC06S05S000 QC FF SAE16 FEMALE 25 35 55 100 50 1-5/16-12 UN 1.25
NC05S05S001 QC FF SAE20 MALE 25 35 103 50 36 1-5/8-12 UN 0.696
NC06S05S001 QC FF SAE20 FEMALE 25 35 55 103 50 1-5/8-12 UN 1.323
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06S010000 QC FF SAE4 FEMALE 6.3 42 28 61.5 24 7/16-20 UNF 0.151
NC05S010001 QC FF SAE6 MALE 6.3 42 49 24 16.15 9/16-18 UNF 0.22
NC06S010001 QC FF SAE6 FEMALE 6.3 42 28 62.5 24 9/16-18 UNF 0.35
NC05S010000 QC FF SAE4 MALE 6.3 42 48 24 16.15 7/16-20 UNF 0.09
NC05S020000 QC FF SAE6 MALE 10 42 66.5 30 19.75 9/16-18 UNF 0.11
NC06S020000 QC FF SAE6 FEMALE 10 42 32 76 30 9/16-18 UNF 0.29
NC05S030000 QC FF SAE8 MALE 10 42 69.5 30 19.75 3/4-16 UNF 0.13
NC06S030000 QC FF SAE8 FEMALE 10 42 32 79 30 3/4-16 UNF 0.25
NC05S030003 QC FF SAE8 MALE 12.5 42 75 34 24.5 3/4-16 UNF 0.317
NC06S030003 QC FF SAE8 FEMALE 12.5 42 38 81 34 3/4-16 UNF 0.377
NC05S040000 QC FF SAE12 MALE 12.5 42 80.5 34 24.5 1-1/16-12 UN 0.291
NC06S040000 QC FF SAE12 FEMALE 12.5 42 38 86.5 34 1-1/16-12 UN 0.411
NC05S030004 QC FF SAE8 MALE 16 35 80 41 27 3/4-16 UNF 0.4
NC06S040004 QC FF SAE12 FEMALE 16 35 42 93 41 1-1/16-12 UN 0.47
NC05S040004 QC FF SAE12 MALE 16 35 85 41 27 1-1/16-12 UN 0.3
NC06S030004 QC FF SAE8 FEMALE 16 35 42 87 41 3/4-16 UNF 0.52
NC05S040005 QC FF SAE12 MALE 19 35 92 41 29.95 1-1/16-12 UN 0.48
NC06S040005 QC FF SAE12 FEMALE 19 35 48 103 41 1-1/16-12 UN 0.78
NC05S050000 QC FF SAE16 MALE 19 35 92 41 29.95 1 5/16 -12 UN 0.7
NC06S050000 QC FF SAE16 FEMALE 19 35 48 103 41 1 5/16 -12 UN 0.85
NC05S050002 QC FF SAE16 MALE 25 35 100 50 36 1-5/16-12 UN 0.58
NC06S050002 QC FF SAE16 FEMALE 25 35 55 100 50 1-5/16-12 UN 1.25
NC05S060000 QC FF SAE20 MALE 25 35 103 50 36 1-5/8-12 UN 0.696
NC06S060000 QC FF SAE20 FEMALE 25 35 55 103 50 1-5/8-12 UN 1.323
disegno tecnico Gemels
QUICK COUPLINGS ISO 16028 FLAT FACE (male / female) MALE THREAD METRIC ISO 8434-1-S (DIN 2353)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC05H01S000 QC FF 8S MALE 6.3 42 54.5 24 16.15 5 M16×1,5 8 0.232
NC06H01S000 QC FF 8S FEMALE 6.3 42 28 68 24 5 M16×1,5 8 0.338
NC05H02S000 QC FF 12S MALE 10 42 72 30 19.75 8 M20×1,5 12 0.208
NC06H02S000 QC FF 12S FEMALE 10 42 32 81.5 30 8 M20×1,5 12 0.695
NC05HA3S000 QC FF 16S MALE 16 35 84 41 27 12 M24×1,5 16 0.397
NC06HA3S000 QC FF 16S FEMALE 16 35 42 92 41 12 M24×1,5 16 0.72
NC05H05S000 QC FF 25S MALE 25 35 105 50 36 20 M36×2 25 0.81
NC06H05S000 QC FF 25S FEMALE 25 35 55 105 50 20 M36×2 25 1.16
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC05H010000 QC FF 8S MALE 6.3 42 54.5 24 16.15 5 M16×1,5 8 0.232
NC06H010000 QC FF 8S FEMALE 6.3 42 28 68 24 5 M16×1,5 8 0.338
NC05H020000 QC FF 12S MALE 10 42 72 30 19.75 8 M20×1,5 12 0.208
NC06H020000 QC FF 12S FEMALE 10 42 32 81.5 30 8 M20×1,5 12 0.695
NC05HA30000 QC FF 16S MALE 16 35 84 41 27 12 M24×1,5 16 0.397
NC06HA30000 QC FF 16S FEMALE 16 35 42 92 41 12 M24×1,5 16 0.72
NC05H050000 QC FF 25S MALE 25 35 105 50 36 20 M36×2 25 0.81
NC06H050000 QC FF 25S FEMALE 25 35 55 105 50 20 M36×2 25 1.16
QUICK COUPLINGS ISO 16028 FLAT FACE (male / female) MALE THREAD ISO 8434-3 (SAE J1453) ORFS BULKHEAD
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06Q02S000 QC FF ORFS 3/8 BK FEMALE 10 42 32 100.5 30 6.5 11/16-16 UN 0.68
NC05Q02S001 QC FF ORFS 3/8 BK MALE 10 42 93.5 30 19.75 9.5 11/16-16 UN 0.327
NC06Q02S001 QC FF ORFS 3/8 BK FEMALE 10 42 32 103 30 9.5 11/16-16 UN 0.705
NC05Q02S000 QC FF ORFS 3/8 BK MALE 10 42 91 30 19.75 6.5 11/16-16 UN 0.304
NC06Q03S002 QC FF ORFS 3/4 BK FEMALE 12.5 42 38 110.5 34 15.5 1 3/16-12 UN 0.9
NC05Q03S002 QC FF ORFS 3/4 BK MALE 12.5 42 104.5 34 24.5 15.5 1 3/16-12 UN 0.4
NC06Q03S001 QC FF ORFS 5/8 BK FEMALE 12.5 42 38 109.5 34 12.5 1-14 UNS 0.578
NC05Q03S001 QC FF ORFS 5/8 BK MALE 12.5 42 103.5 34 24.5 12.5 1-14 UNS 0.398
NC06Q03S000 QC FF ORFS 1/2 BK FEMALE 12.5 42 38 105.5 34 9.5 13/16-16 UN 0.534
NC05Q03S000 QC FF ORFS 1/2 BK MALE 12.5 42 99.5 34 24.5 9.5 13/16-16 UN 0.353
NC05QA3S000 QC FF ORFS 3/4 BK MALE 16 35 108.5 41 27 15.5 1 3/16-12 UN 0.508
NC06QA3S000 QC FF ORFS 3/4 BK FEMALE 16 35 42 116.5 41 15.5 1 3/16-12 UN 0.91
NC05Q05S001 QC FF ORFS 3/4 BK MALE 19 35 113.5 41 29.95 15.5 1 3/16-12 UN 0.56
NC06Q05S001 QC FF ORFS 3/4 Bk FEMALE 19 35 48 124.5 41 15.5 1 3/16-12 UN 1.05
NC05Q05S000 QC FF ORFS 1 MALE 19 35 114 41 29.95 20.5 1 7/16-12 UN 0.617
NC06Q05S000 QC FF ORFS1 FEMALE 19 35 48 125 41 20.5 1 7/16-12 UN 1.107
NC05Q06S000 QC FF ORFS 1 BK MALE 25 35 129 50 26 1 11/16-12 UN 0.92
NC06Q06S000 QC FF ORFS1 BK FEMALE 25 35 55 129 50 26 1 11/16-12 UN 2.71
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC05Q020001 QC FF ORFS 1/2 BK MALE 10 42 93.5 30 19.75 9.5 13/16-16 UN 0.327
NC06Q020001 QC FF ORFS 1/2 BK FEMALE 10 42 32 103 30 9.5 13/16-16 UN 0.705
NC05Q030001 QC FF ORFS 5/8 BK MALE 12.5 42 103.5 34 24.5 12.5 1-14 UNS 0.398
NC06Q030001 QC FF ORFS 5/8 BK FEMALE 12.5 42 38 109.5 34 12.5 1-14 UNS 0.578
NC05Q030002 QC FF ORFS 3/4 BK MALE 12.5 42 104.5 34 24.5 15.5 1 3/16-12 UN 0.4
NC06Q030002 QC FF ORFS 3/4 BK FEMALE 12.5 42 38 110.5 34 15.5 1 3/16-12 UN 0.9
NC05Q050001 QC FF ORFS 3/4 BK MALE 19 35 113.5 41 29.95 15.5 1 3/16-12 UN 0.56
NC06Q050001 QC FF ORFS 3/4 BK FEMALE 19 35 48 124.5 41 15.5 1 3/16-12 UN 1.05
NC05Q060000 QC FF ORFS 1 BK MALE 25 35 129 50 36 26 1 11/16-12 UN 0.92
NC06Q060000 QC FF ORFS1 BK FEMALE 25 35 55 129 50 26 1 11/16-12 UN 2.71
QUICK COUPLINGS ISO 16028 FLAT FACE (male / female) MALE THREAD METRIC ISO 8434-1-L (DIN 2353)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06L01S000 QC FF 8L FEMALE 6.3 42 28 66 24 6 M14×1,5 8 0.246
NC05L01S001 QC FF 10L MALE 6.3 42 53.5 24 16.15 8 M16×1,5 10 0.154
NC06L01S001 QC FF 10L FEMALE 6.3 42 28 67 24 8 M16×1,5 10 0.227
NC05L01S000 QC FF 8L MALE 6.3 42 52.5 24 16.15 6 M14×1,5 8 0.153
NC05L02S001 QC FF 10L MALE 10 42 71 30 19.75 8 M16×1,5 10 0.18
NC06L02S001 QC FF 10L FEMALE 10 42 32 80.5 30 8 M16×1,5 10 0.473
NC05L02S002 QC FF 12L MALE 10 42 71 30 19.75 10 M18×1,5 12 0.18
NC06L02S002 QC FF 12L FEMALE 10 42 32 80.5 30 10 M18×1,5 12 0.469
NC05L02S003 QC FF 15L MALE 10 42 72 30 19.75 12 M22×1,5 15 0.184
NC06L02S003 QC FF 15L FEMALE 10 42 32 81.5 30 12 M22×1,5 15 0.477
NC05L03S001 QC FF 15L MALE 12.5 42 75 34 24.5 12 M22×1,5 15 0.384
NC06L03S002 QC FF 18L FEMALE 12.5 42 38 81 34 15 M26×1,5 18 0.673
NC05L03S002 QC FF 18L MALE 12.5 42 75 34 24.5 15 M26×1,5 18 0.396
NC06L03S001 QC FF 15L FEMALE 12.5 42 38 81 34 12 M22×1,5 15 0.665
NC06L03S000 QC FF 12L FEMALE 12.5 42 38 80 34 10 M18×1,5 12 0.658
NC05L03S000 QC FF 12L MALE 12.5 42 74 34 24.5 10 M18×1,5 12 0.376
NC05LA3S000 QC FF 18L MALE 16 35 82 41 27 15 M26×1,5 18 0.342
NC06LA3S000 QC FF 18L FEMALE 16 35 42 90 41 15 M26×1,5 18 0.649
NC05LA3S001 QC FF 22L MALE 16 35 84 41 27 19 M30×2 22 0.339
NC06LA3S001 QC FF 22L FEMALE 16 35 42 92 41 19 M30×2 22 0.636
NC05L04S000 QC FF 18L MALE 19 35 87 41 29.95 15 M26×1,5 18 0.474
NC06L04S000 QC FF 18L FEMALE 19 35 48 98 41 15 M26×1,5 18 0.89
NC05L04S001 QC FF 22L MALE 19 35 89 41 29.95 19 M30×2 22 0.461
NC06L04S001 QC FF 22L FEMALE 19 35 48 100 41 19 M30×2 22 0.882
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC06L010000 QC FF 8L FEMALE 6.3 42 28 66 24 6 M14×1,5 8 0.246
NC05L010001 QC FF 10L MALE 6.3 42 53.5 24 16.15 8 M16×1,5 10 0.154
NC06L010001 QC FF 10L FEMALE 6.3 42 28 67 24 8 M16×1,5 10 0.227
NC05L010000 QC FF 8L MALE 6.3 42 52.5 24 16.15 6 M14×1,5 8 0.153
NC05L020001 QC FF 10L MALE 10 42 71 30 19.75 8 M16×1,5 10 0.18
NC06L020001 QC FF 10L FEMALE 10 42 32 80.5 30 8 M16×1,5 10 0.473
NC05L020002 QC FF 12L MALE 10 42 71 30 19.75 10 M18×1,5 12 0.18
NC06L020002 QC FF 12L FEMALE 10 42 32 80.5 30 10 M18×1,5 12 0.469
NC05L020003 QC FF 15L MALE 10 42 72 30 19.75 12 M22×1,5 15 0.184
NC06L020003 QC FF 15L FEMALE 10 42 32 81.5 30 12 M22×1,5 15 0.477
NC05L030001 QC FF 15L MALE 12.5 42 75 34 24.5 12 M22×1,5 15 0.384
NC06L030002 QC FF 18L FEMALE 12.5 42 38 81 34 15 M26×1,5 18 0.673
NC05L030002 QC FF 18L MALE 12.5 42 75 34 24.5 15 M26×1,5 18 0.396
NC06L030001 QC FF 15L FEMALE 12.5 42 38 81 34 12 M22×1,5 15 0.665
NC06L030000 QC FF 12L FEMALE 12.5 42 38 80 34 10 M18×1,5 12 0.658
NC05L030000 QC FF 12L MALE 12.5 42 74 34 24.5 10 M18×1,5 12 0.376
NC05LA30000 QC FF 18L MALE 16 35 82 41 27 15 M26×1,5 18 0.342
NC06LA30000 QC FF 18L FEMALE 16 35 42 90 41 15 M26×1,5 18 0.649
NC05LA30001 QC FF 22L MALE 16 35 84 41 27 19 M30×2 22 0.339
NC06LA30001 QC FF 22L FEMALE 16 35 42 92 41 19 M30×2 22 0.636
NC05L040000 QC FF 18L MALE 19 35 87 41 29.95 15 M26×1,5 18 0.474
NC06L040000 QC FF 18L FEMALE 19 35 48 98 41 15 M26×1,5 18 0.89
NC05L040001 QC FF 22L MALE 19 35 89 41 29.95 19 M30×2 22 0.461
NC06L040001 QC FF 22L FEMALE 19 35 48 100 41 19 M30×2 22 0.882
QUICK COUPLINGS ISO 16028 FLAT FACE (male / female) MALE THREAD METRIC ISO 8434-1-S (DIN 2353) BULKHEAD
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC05I01S000 QC FF 8S BK MALE 6.3 42 69.5 24 16.15 5 M16×1,5 8 0.254
NC06I01S000 QC FF 8S BK FEMALE 6.3 42 28 83 24 5 M16×1,5 8 0.359
NC05I02S000 QC FF 12S BK MALE 10 42 87 30 19.75 8 M20×1,5 12 0.24
NC06I02S000 QC FF 12S BK FEMALE 10 42 32 96.5 30 8 M20×1,5 12 0.726
NC05I03S000 QC FF 16S BK MALE 12.5 42 92 34 24.5 12 M24×1,5 16 0.546
NC06I03S000 QC FF 16S BK FEMALE 12.5 42 38 98 34 12 M24×1,5 16 0.95
NC05IA3S000 QC FF 16S BK MALE 16 35 99 41 27 12 M24×1,5 16 0.437
NC06IA3S000 QC FF 16S BK FEMALE 16 35 42 107 41 12 M24×1,5 16 0.76
NC05I04S000 QC FF 20S BK MALE 19 35 113 41 29.95 16 M30×2 20 0.546
NC06I04S000 QC FF 20S BK FEMALE 19 35 48 124 41 16 M30×2 20 0.957
NC05I04S001 QC FF 25S BK MALE 19 35 117 41 29.95 20 M36×2 25 0.615
NC06I04S001 QC FF 25S BK FEMALE 19 35 48 128 41 20 M36×2 25 1.027
NC05I05S000 QC FFE 25S BK MALE 25 35 128 50 36 20 M36×2 25 0.937
NC06I05S000 QC FF 25S BK FEMALE 25 35 55 128 50 20 M36×2 25 1.28
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC05I010000 QC FF 8S BK MALE 6.3 42 69.5 24 16.15 5 M16×1,5 8 0.254
NC06I010000 QC FF 8S BK FEMALE 6.3 42 28 83 24 5 M16×1,5 8
