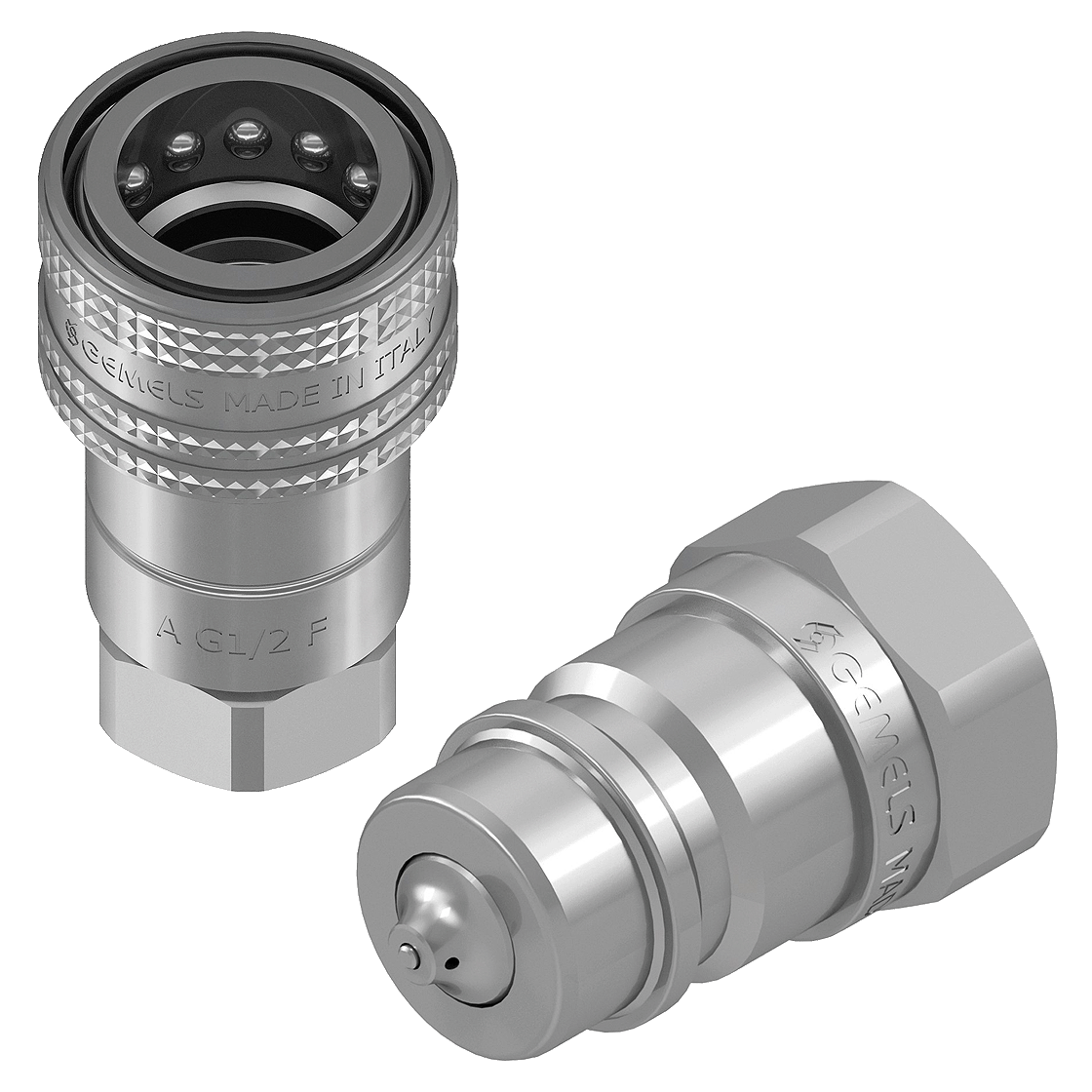

Innesti Rapidi DV

PUSH-PULL CON POPPET CON VALVOLA DI DECOMPRESSIONE

innesti rapidi per strumentazione

ISO 7241/A

Scheda Tecnica

Carbon Steel
Tipo ISO 7241/A PUSH-PULL
Dimensioni dal DN13 al DN20
Pressione fino a PN350
pdf ( 1.12 MB )
Dettagli Tecnici
push pull con poppet
FEMALE THREAD ISO 1179-1 BSPP_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23G030000 QC DV G 1/2 MALE 12.5 35 44 27 20.5 G1/2 0.0924
NC24G030000 QC DV G 1/2 FEMALE 12.5 35 38.25 66 27 G1/2 0.227
NC23G040000 QC DV G 3/4 MALE 20 25 55.5 34 29.1 G3/4 0.2
NC24G040000 QC DV G 3/4 FEMALE 20 25 48 83 34 G3/4 0.49
disegno tecnico Gemels
FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23N030000 QC DV N 1/2 MALE 12.5 35 44 27 20.5 N1/2 0.0924
NC24N030000 QC DV N 1/2 FEMALE 12.5 35 38.25 66 27 N1/2 0.227
NC23N040000 QC DV N 3/4 MALE 20 25 55.5 34 29.1 N3/4 0.2
NC24N040000 QC DV N 3/4 FEMALE 20 25 48 83 34 N3/4 0.49
disegno tecnico Gemels
FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB_1
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23S030000 QC DV SAE8 MALE 12.5 35 44 27 20.5 SAE8 0.0924
NC24S030000 QC DV SAE8 FEMALE 12.5 35 38.25 66 27 SAE8 0.227
NC23S040000 QC DV SAE12 MALE 20 25 55.5 34 29.1 SAE12 0.2
NC24S040000 QC DV SAE12 FEMALE 20 25 48 83 34 SAE12 0.49
disegno tecnico Gemels
MALE THREAD METRIC ISO 8434-1-S (DIN 2353)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23H030000 QC DV 12S MALE 12.5 35 57 27 20.5 8 M20×1,5 12 0.135
NC24H030000 QC DV 12S FEMALE 12.5 35 38 64.5 27 8 M20×1,5 12 0.28
NC23H030001 QC DV 16S MALE 12.5 35 59 27 20.5 12 M24×1,5 16 0.157
NC24H030001 QC DV 16S FEMALE 12.5 35 38 66.5 27 12 M24×1,5 16 0.284
NC23H040000 QC DV 16S MALE 20 25 64 34 29 12 M24×1,5 16 0.251
NC24H040000 QC DV 16S FEMALE 20 25 47 79.5 34 12 M24×1,5 16 0.51
NC23H040001 QC DV 20S MALE 20 25 66 34 29 16 M30×2 20 0.26
NC24H040001 QC DV 20S FEMALE 20 25 47 81.5 34 16 M30×2 20 0.53
disegno tecnico Gemels
MALE THREAD METRIC ISO 8434-1-L (DIN 2353)
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23L030000 QC DV 10L MALE 12.5 35 56 27 20.5 8 M16×1,5 10 0.16
NC24L030000 QC DV 10L FEMALE 12.5 35 38 63.5 27 8 M16×1,5 10 0.24
NC23L030001 QC DV 12L MALE 12.5 35 56 27 20.5 10 M18×1,5 12 0.169
NC24L030001 QC DV 12L FEMALE 12.5 35 38 63.5 27 10 M18×1,5 12 0.254
NC23L030002 QC DV 15L MALE 12.5 35 57 27 20.5 12 M22×1,5 15 0.17
NC24L030002 QC DV 15L FEMALE 12.5 35 38 64.5 27 12 M22×1,5 15 0.26
NC23L030003 QC DV 18L MALE 12.5 35 57 27 20.5 15 M26×1,5 18 0.179
NC24L030003 QC DV 18L FEMALE 12.5 35 38 64.5 27 15 M26×1,5 18 0.263
NC23L040000 QC DV 18L MALE 20 25 62 34 29.1 15 M26×1,5 18 0.25
NC24L040000 QC DV 18L FEMALE 20 25 47 77.5 34 15 M26×1,5 18 0.52
NC23L040001 QC DV 22L MALE 20 25 64 34 29.1 19 M30×2 22 0.27
NC24L040001 QC DV 22L FEMALE 20 25 47 79.5 34 19 M30×2 22 0.55
disegno tecnico Gemels
MALE THREAD METRIC ISO 8434-1-S (DIN 2353) BULKHEAD
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23I030000 QC DV 10S BK MALE 12.5 35 72 27 20.5 7 M18×1,5 10 0.169
NC24I030000 QC DV 10S BK FEMALE 12.5 35 38 79.5 27 7 M18×1,5 10 0.3
NC23I030001 QC DV 12S BK MALE 12.5 35 72 27 20.5 8 M20×1,5 12 0.16
NC24I030001 QC DV 12S BK FEMALE 12.5 35 38 79.5 27 8 M20×1,5 12 0.32
NC23I040000 QC DV 16S BK MALE 20 25 79 34 29.1 12 M24×1,5 16 0.27
NC24I040000 QC DV 16S BK FEMALE 20 25 47 94.5 34 12 M24×1,5 16 0.57
disegno tecnico Gemels
MALE THREAD METRIC ISO 8434-1-L (DIN 2353) BULKHEAD
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC23M030000 QC DV 10L BK MALE 12.5 35 71 27 20.5 8 M16×1,5 10 0.149
NC24M030000 QC DV 10L BK FEMALE 12.5 35 38 78.5 27 8 M16×1,5 10 0.3
NC23M030001 QC DV 12L BK MALE 12.5 35 72 27 20.5 10 M18×1,5 12 0.15
NC24M030001 QC DV 12L BK FEMALE 12.5 35 38 79.5 27 10 M18×1,5 12 0.3
NC23M030002 QC DV 15L BK MALE 12.5 35 72 27 20.5 12 M22×1,5 15 0.16
NC24M030002 QC DV 15L BK FEMALE 12.5 35 38 79.5 27 12 M22×1,5 15 0.31
NC23M030003 QC DV 18L BK MALE 12.5 35 72 27 20.5 15 M26×1,5 18 0.175
NC24M030003 QC DV 18L BK FEMALE 12.5 35 38 79.5 27 15 M26×1,5 18 0.33
NC23M040000 QC DV 15L BK MALE 20 25 77 34 29.1 12 M22×1,5 15 0.252
NC24M040000 QC DV 15L BK FEMALE 20 25 47 92.5 34 12 M22×1,5 15 0.55
NC23M040001 QC DV 22L BK MALE 20 25 84 34 29.1 19 M30×2 22 0.298
NC24M040001 QC DV 22L BK FEMALE 20 25 47 99.5 34 19 M30×2 22 0.6
disegno tecnico Gemels
Download: Cataloghi e Disegni

QUICK COUPLINGS DV

DATASHEET
pdf ( 1.12 MB )
